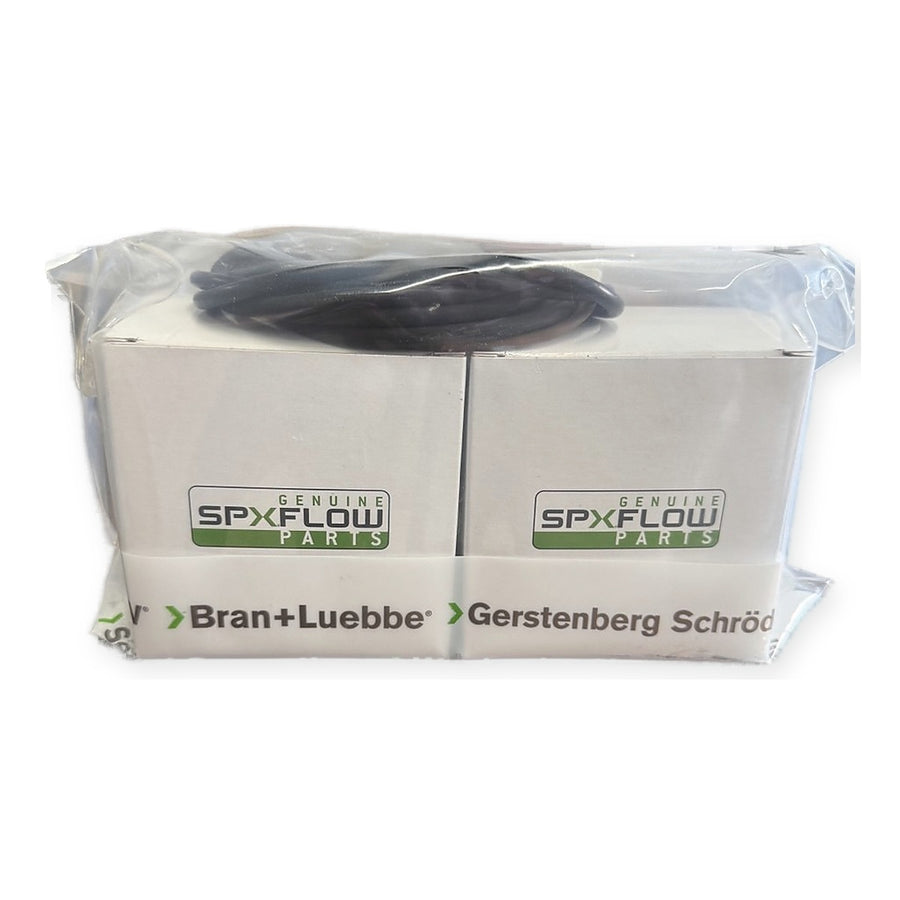

SPX FLOW Genuine Parts packaged seal kits on white background — representative image for Waukesha Universal U2 seal kit 134097+; representative packaging and seals, exact kit contents vary

Waukesha Cherry-Burrell

Waukesha Cherry-Burrell SEAL KIT DM FKM TCNF/SC-C/SC 324U2 — 134097+

OEM / SKU
134097+
Part category
Waukesha Seal Kit
Availability
Currently out of stock
Price $15,598.79 USD
Need to confirm the part?

Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.

Request a quote Call 847-839-8442

Part details

Waukesha Cherry-Burrell U2 seal kit 134097+

This complete kit is mapped to the pump and seal configurations shown below.

Applicable configurations

  • 324-U2double mechanicalSeal faces / sleeve: TC/SC-C/SC NFElastomer: FKM

Kit contents

Component part number Item Description Qty.
V70154 91 O-RING-154 FDA FKM 2
V70149 92 O-RING-149 FDA FKM 2
V70232 26D O-RING-232 FDA FKM 2
V70237 26A O-RING-237 FDA FKM 2
V70125 26C O-RING-125 FDA FKM 2
V70382 36 O-RING-383 FDA FKM 1
105418+ 98 SEAL, OUTER 320U2 CARBON 2
105417+ 93 SEAT SEAL 320U2 SC 2
124741+ 94 SEAL INNER 320U2 NF TC 2
105419+ 95 WAVE SPRING 320U2 INNER 2
V70160 96 O-RING-160 FDA FKM 2
105420+ 97 WAVE SPRING 320U2 OUTER 2
35897+ Not itemized in cited drawing KIT GLAND PLATE CONNECTION 2
V70378 36B O-RING-378 FDA FKM 1

BOM reference: WCB parts list PL5063. Confirm the pump model, seal type, seal-face combination, and elastomer before ordering. Contact Triplex if the nameplate or installed seal configuration is unclear.
