Graco

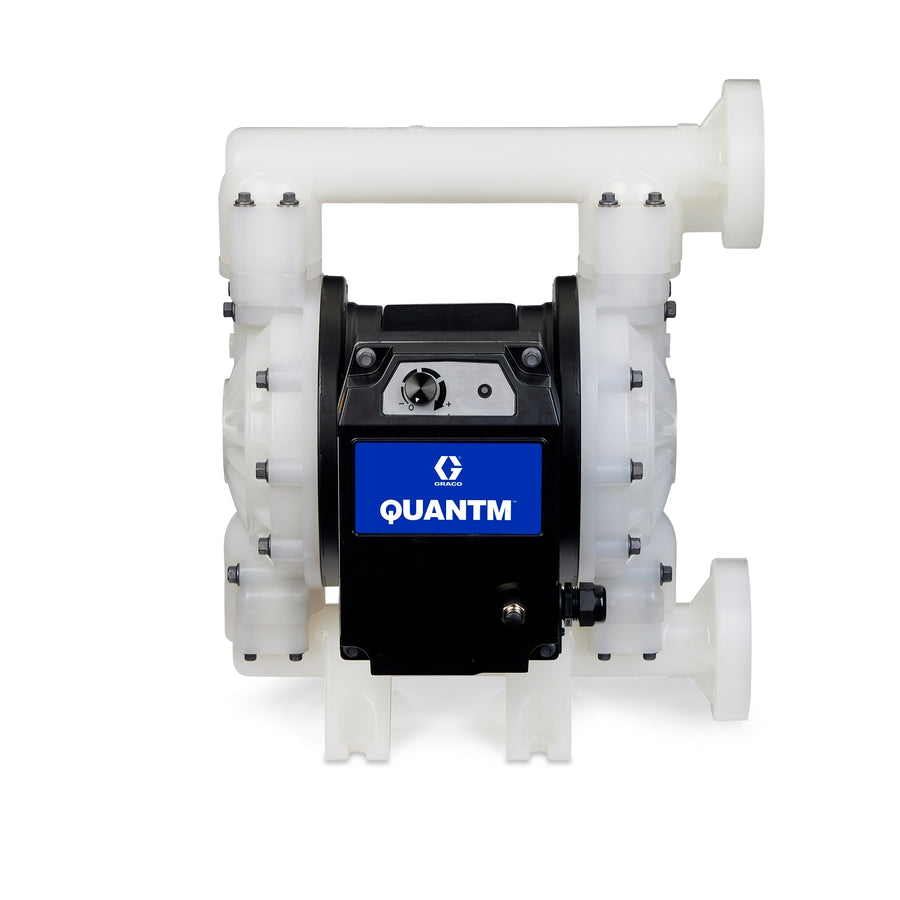

Graco QUANTM i80, 1.5"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm — TE80-0056
- OEM / SKU
- TE80-0056
- Part category
- Diaphragm Pumps
- Availability
- In stock: 3 available
Price
$6,460.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE80-0056
QUANTM i80, 1.5"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm
Graco catalog description: QUANTM PUMP,QTD-PPFC2SPSPSPPTP200
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | Polypropylene, End Flange |
|---|---|
| Fluid Passage Size | 1.5 in (38 mm) |
| Fluid Outlet Thread Gender | Flange |
| Fluid Outlet Size | 38.1 mm |
| Fluid Inlet Thread Gender | Flange |
| Fluid Inlet Size | 1.5 in (38.1 mm) |
| Maximum Flow Rate | 303 L/min |
| Maximum Fluid Operating Temperature | 150 °F (66 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.19 in (4.8 mm) |
| Minimum Fluid Operating Temperature | 32 °F |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 15 A |
| Weight | 34 kg |
| UPC | 769946686302 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 23.75 × 18.5 × 28 in |
| Graco Shipping Weight | 99 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
