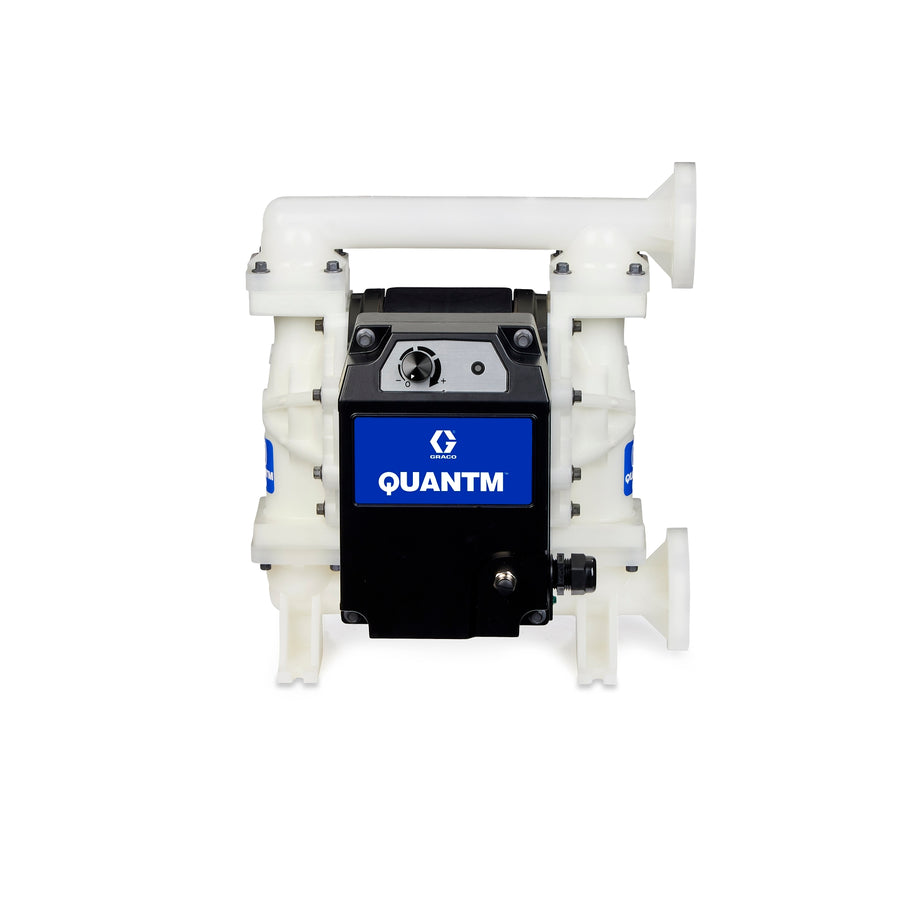

Graco QUANTM i30 Polypropylene Electric Diaphragm Pump, 1" End Flange, 100-120VAC 1Ph, Black Powder Coated Aluminum Center, Stainless Steel Seat, Buna-N Ball, Buna-N Diaphragm, PTFE Manifold Seals — TE30-0134
- OEM / SKU
- TE30-0134
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 5 – Nov 12
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE30-0134
QUANTM i30 Polypropylene Electric Diaphragm Pump, 1" End Flange, 100-120VAC 1Ph, Black Powder Coated Aluminum Center, Stainless Steel Seat, Buna-N Ball, Buna-N Diaphragm, PTFE Manifold Seals
Graco catalog description: QUANTM PUMP,QTC-PPFC5SABNBNPTP200
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for TE30-0134
Documents Graco lists for part number TE30-0134.
- Instruction Manual QUANTM® Pumps, Industrial Models, Instruction Manual 3A8572L
- Parts / Repair Manual QUANTM® Electric Motor, Repair-Parts Manual 3A7637J
- Parts / Repair Manual QUANTM Pumps, Industrial Models, Parts 3A8946J
- Brochure QUANTM Brochure 300885
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Fluid Section | Polypropylene, End Flange |
|---|---|
| Fluid Passage Size | 1 in (25 mm) |
| Fluid Outlet Thread Gender | Flange |
| Fluid Outlet Size | 25.4 mm |
| Fluid Inlet Thread Gender | Flange |
| Fluid Inlet Size | 1 in (25.4 mm) |
| Maximum Flow Rate | 114 L/min |
| Maximum Fluid Operating Temperature | 150 °F (66 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.125 in (3.2 mm) |
| Minimum Fluid Operating Temperature | 32 °F |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 12 A |
| Weight | 27.7 kg |
| UPC | 769946277814 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 18 × 15.5 × 20 in |
| Graco Shipping Weight | 71 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
