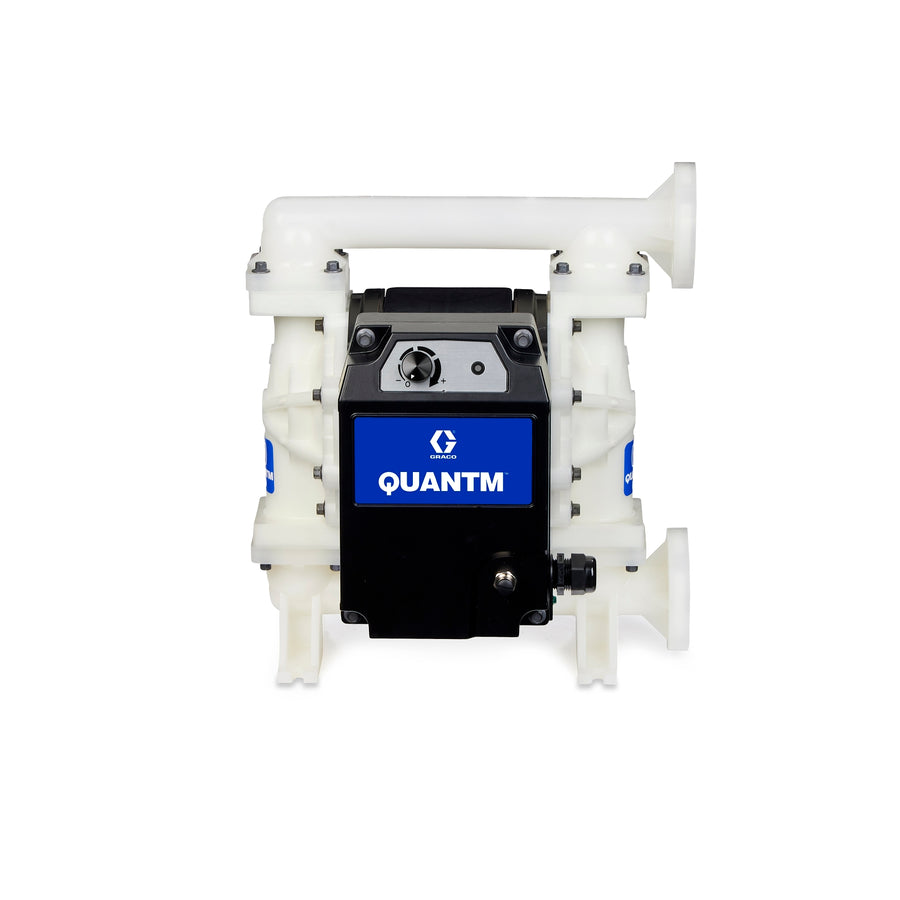

Graco QUANTM i30 Polypropylene Electric Diaphragm Pump, 1" End Flange, 100-120VAC 1Ph, Black Powder Coated Aluminum Center, Stainless Steel Seat, Santoprene Ball, Santoprene Diaphragm, PTFE Manifold Seals — TE30-0129
- OEM / SKU
- TE30-0129
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$3,920.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE30-0129
QUANTM i30 Polypropylene Electric Diaphragm Pump, 1" End Flange, 100-120VAC 1Ph, Black Powder Coated Aluminum Center, Stainless Steel Seat, Santoprene Ball, Santoprene Diaphragm, PTFE Manifold Seals
Graco catalog description: QUANTM PUMP,QTC-PPFC5SASPSPPTP200
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | Polypropylene, End Flange |
|---|---|
| Fluid Passage Size | 1 in (25 mm) |
| Fluid Outlet Thread Gender | Flange |
| Fluid Outlet Size | 25.4 mm |
| Fluid Inlet Thread Gender | Flange |
| Fluid Inlet Size | 1 in (25.4 mm) |
| Maximum Flow Rate | 114 L/min |
| Maximum Fluid Operating Temperature | 150 °F (66 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.125 in (3.2 mm) |
| Minimum Fluid Operating Temperature | 32 °F |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 12 A |
| UPC | 769946277760 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
