Graco

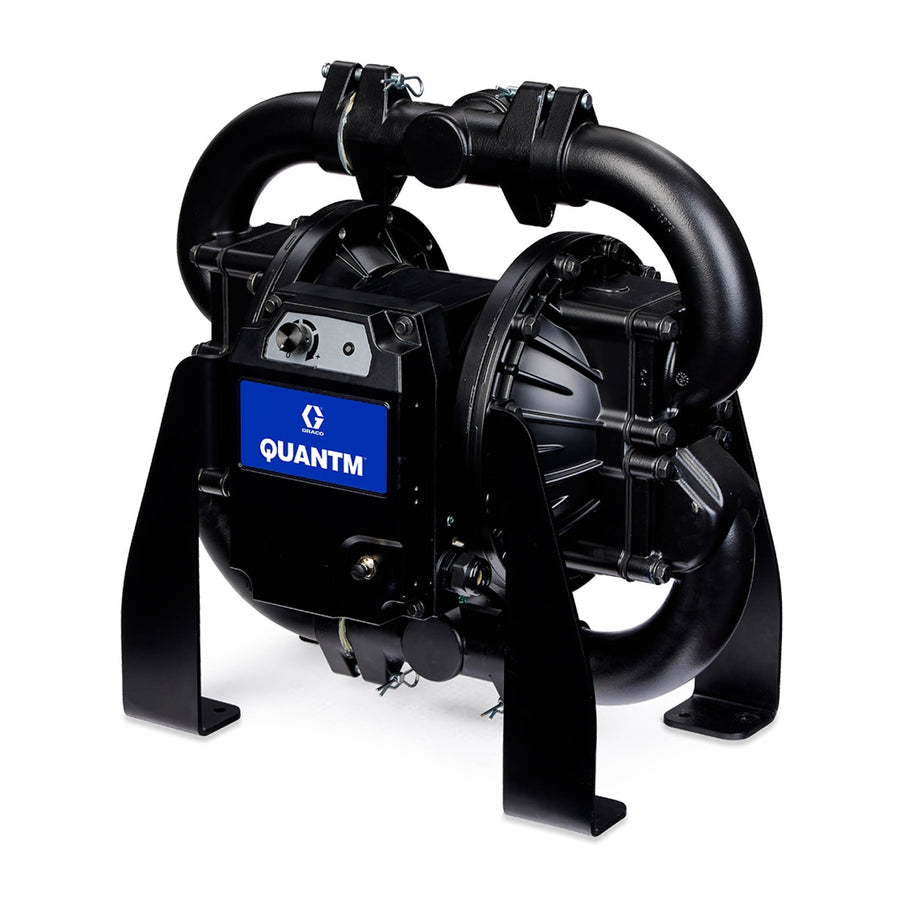

Graco QUANTM i120LP, 2" BSPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, FB Seat, Flap Valve, CR Diaphragm — TE120-0299
- OEM / SKU
- TE120-0299
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$6,780.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE120-0299
QUANTM i120LP, 2" BSPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, FB Seat, Flap Valve, CR Diaphragm
Graco catalog description: QUANTM PUMP,QTE-ALFC2FB-BCRBNA2LP
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | Aluminum, Center Port, BSPT |
|---|---|
| Fluid Passage Size | 2 in (51 mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 51 mm |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (51 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 60 psi (4.1 bar) |
| Maximum Solid Size | 1.8 in (45 mm) |
| Minimum Fluid Operating Temperature | 10 °F (-12 °C) |
| Model | QUANTM |
| Maximum Amperage | 15 A |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 33 × 34 in |
| Graco Shipping Weight | 154 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
