Graco

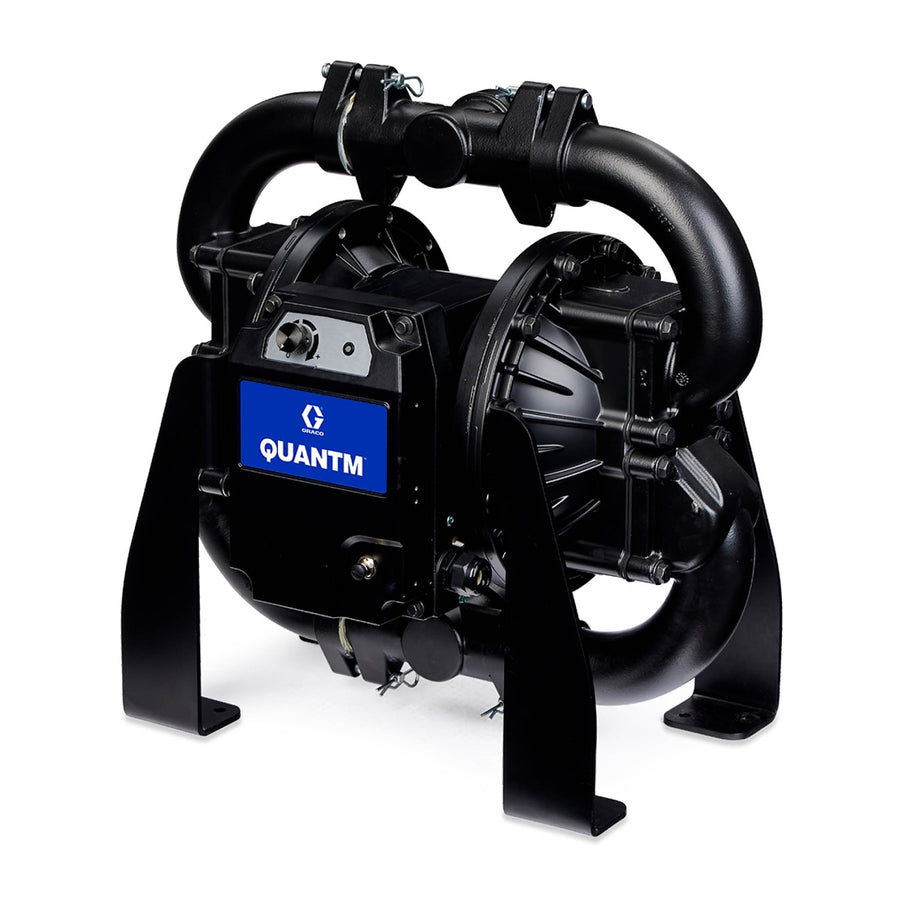

Graco QUANTM i120LP, 2" NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, FB Seat, Flap Valve, SP Diaphragm — TE120-0281
- OEM / SKU
- TE120-0281
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$6,130.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE120-0281
QUANTM i120LP, 2" NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, FB Seat, Flap Valve, SP Diaphragm
Graco catalog description: QUANTM PUMP,QTE-ALFC1FB-BSPBNA1LP
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for TE120-0281
Documents Graco lists for part number TE120-0281.
- Instruction Manual QUANTM® Pumps, Industrial Models, Instruction Manual 3A8572L
- Instruction Manual QUANTM Leak Sensors, Instruction 3A8861H
- Instruction Manual SaniForce Diaphragm Pumps, BV-Series, Instructions 3A8983A
- Parts / Repair Manual QUANTM® Electric Motor, Repair-Parts Manual 3A7637J
- Parts / Repair Manual QUANTM Pumps, Industrial Models, Parts 3A8946J
- Brochure 3H0010EN-B QUANTM i120LP Industrial Flapper Pump Flyer Brochure 3H0010
Specifications
| Fluid Section | Aluminum, Center Port, NPT |
|---|---|
| Fluid Passage Size | 2 in (51 mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 51 mm |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (51 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 60 psi (4.14 bar) |
| Maximum Solid Size | 1.8 in (45.7 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 7.5 A |
| Weight | 53.1 kg |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 32 × 19 × 29 in |
| Graco Shipping Weight | 155 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
