Graco

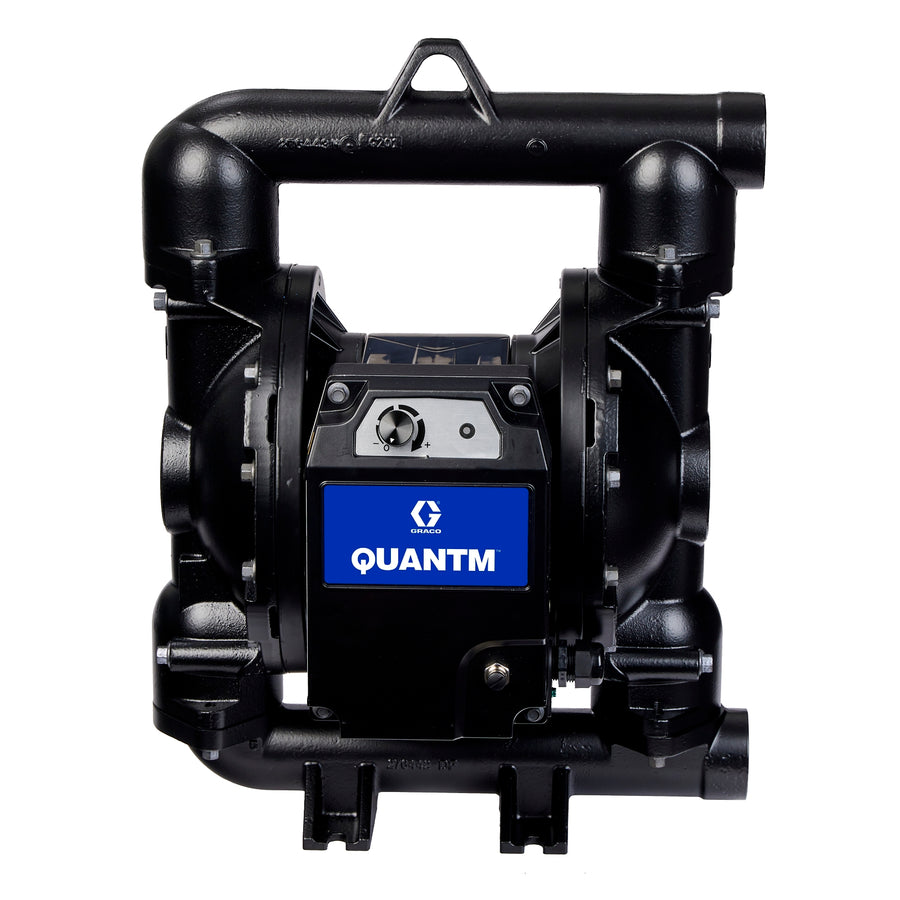

Graco QUANTM i120, 2"NPT, Cast Iron Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm — TE120-0084
- OEM / SKU
- TE120-0084
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Pending
Price
$6,510.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE120-0084
QUANTM i120, 2"NPT, Cast Iron Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm
Graco catalog description: QUANTM QUANTM PUMP,QTE-CIFC2SPSPSPPTI100
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | Cast Iron, End Port, NPT |
|---|---|
| Fluid Passage Size | 2 in (51 mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 50.8 mm |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (51 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 60 psi (4.14 bar) |
| Maximum Solid Size | 0.25 in (6.4 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 15 A |
| Weight | 74.8 kg |
| UPC | 769946322798 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 32.5 × 33.5 in |
| Graco Shipping Weight | 195 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
