Graco

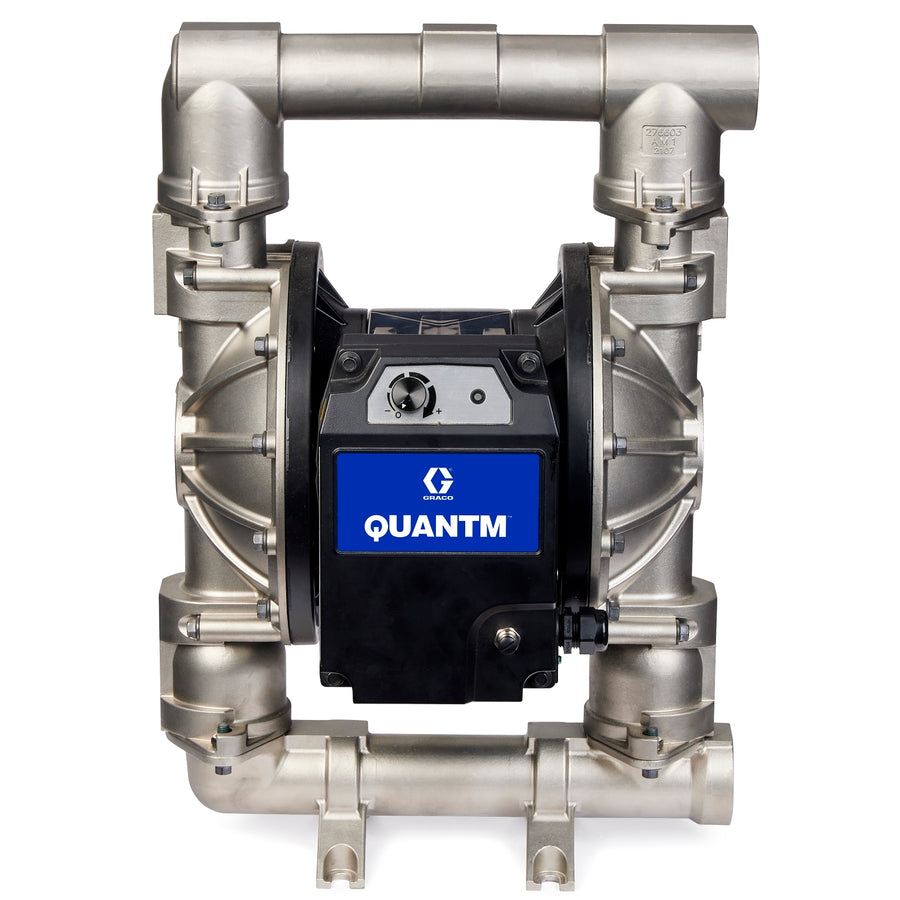

Graco QUANTM i120, 2"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm — TE120-0068
- OEM / SKU
- TE120-0068
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$12,110.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: TE120-0068
QUANTM i120, 2"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm
Graco catalog description: QUANTM PUMP,QTE-SSFC2SAPTPSPTS100
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | Stainless Steel, End Port, NPT |
|---|---|
| Fluid Passage Size | 2 in (51 mm) |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 50.8 mm |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (51 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 60 psi (4.14 bar) |
| Maximum Solid Size | 0.25 in (6.4 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 15 A |
| Weight | 73.5 kg |
| UPC | 769946322637 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 32.5 × 35 in |
| Graco Shipping Weight | 202 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
