Graco

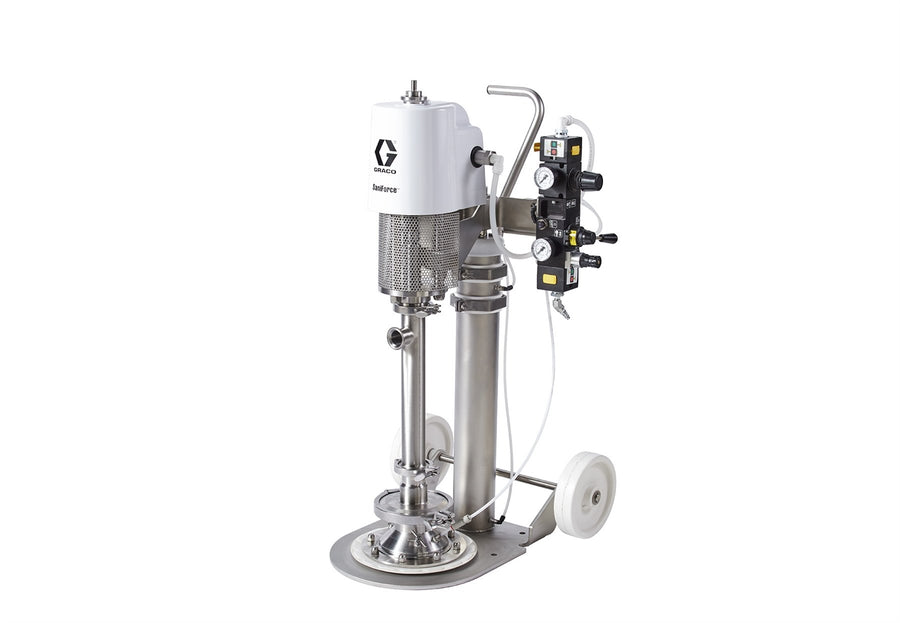

Graco SaniForce Pail Unit, Stainless Steel Frame, 6:1 PP, PTFE Wiper Seal, Exposed Controls — SPU.A01AAA1AA0C21
- OEM / SKU
- SPU.A01AAA1AA0C21
- Part category
- Drum & Pail Unloaders
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$20,950.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SPU.A01AAA1AA0C21
SaniForce Pail Unit, Stainless Steel Frame, 6:1 PP, PTFE Wiper Seal, Exposed Controls
Graco catalog description: SANIFORCE PAIL UNLOADER SYSTEM,RAM,HYGIENIC
Product group: SaniForce Drum Unloaders
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Plate | Static Wiper Plate, Pail (11.4 in. seal for use with 11.8 in. pails) |
|---|---|
| Ram Material | Stainless Steel |
| Ambient/Warm Melt/Hot Melt | 90 |
| Compatible Drum Height | 20 in (508 mm, 50.8 cm) |
| Compatible Drum Inside Diameter | 10-11.2 in (254-285 mm, 25.4-28.5 cm) |
| Maximum Flow Rate | 15.1 L/min |
| Maximum Fluid Pressure | 410 psi (28.7 bar, 2900 kPa) |
| Includes | Mobil |
| Maximum Air Inlet Pressure | 100 psi (6.89 bar, 690 kPa, 7.03 kg/cm²) |
| Maximum Height | 62.8 in (5.2 ft, 1595 mm, 160 cm, 1.6 m) |
| Maximum Operating Temperature | 90 °F (32 °C) |
| Maximum Working Pressure | 410 psi (28.7 bar, 2900 kPa, 2.9 MPa) |
| Minimum Height | 42.3 in (3.5 ft, 1074 mm, 107 cm, 1.07 m) |
| Model | SaniForce 2.0 |
| Overall Depth | 24.8 in (630 mm, 63 cm) |
| Overall Width | 22 in (559 mm, 56 cm) |
| Series | Pail Unloader |
| Weight | 72.6 kg |
| Control Panel Type | Exposed |
| Container Type | Pail |
| System Controller Type | Exposed Pneumatic |
| UPC | 755652776598 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 28 × 29.5 × 55 in |
| Graco Shipping Weight | 207 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
