Graco

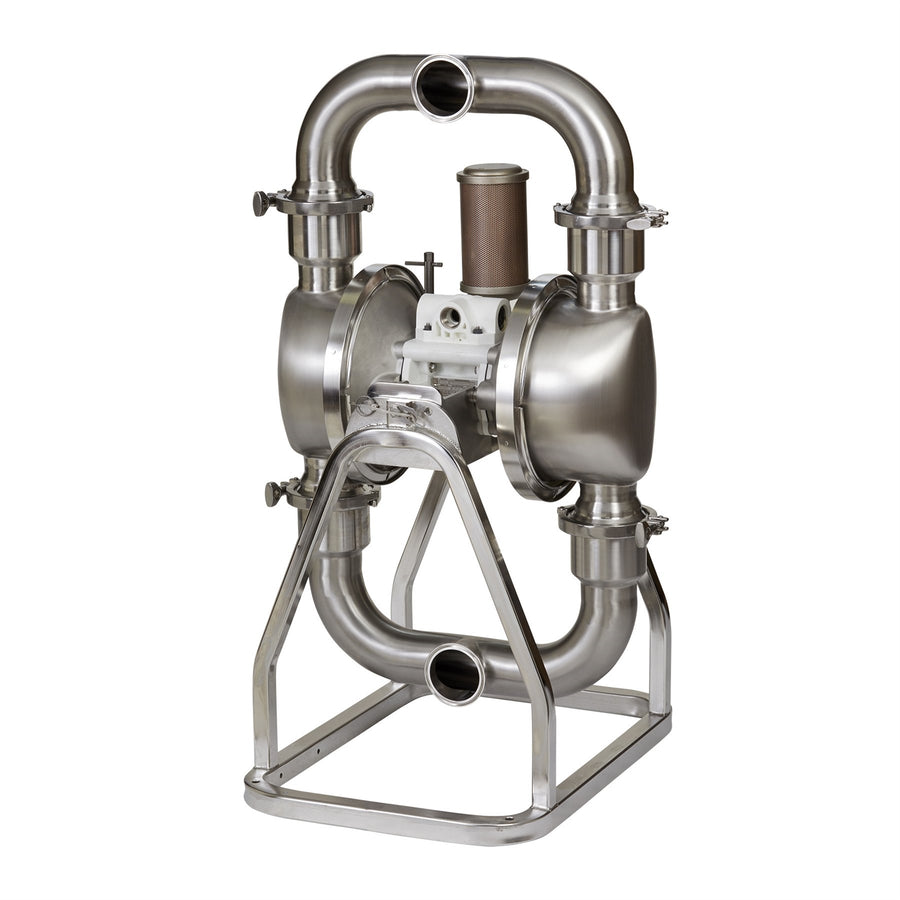

Graco SaniForce 3250, 3" HS SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms — SP3B.0016
- OEM / SKU
- SP3B.0016
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 21 – Nov 28
Price
$18,050.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SP3B.0016
SaniForce 3250, 3" HS SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, SP Balls, SP Diaphragms
Graco catalog description: SANIFORCE AODD PUMP,3250HS.PP01ASSASSSPSPEP21
Product group: SaniForce 3-A Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 3/4 in |
| For Use With | Food, Personal Care |
| Fluid Passage Size | 3 in (76 mm) |
| fluid_passage_size_cm | 7.6 |
| Maximum Air Consumption | 290 SCFM |
| Maximum Air Pressure | 100 psi (6.9 bar) |
| Maximum Flow Rate | 870 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.75 in (19 mm, 1.9 cm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | SaniForce |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 190 CPM |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 3-inch |
| UPC | 755652877394 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 28.125 × 33.75 × 49.25 in |
| Graco Shipping Weight | 163 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
