Graco

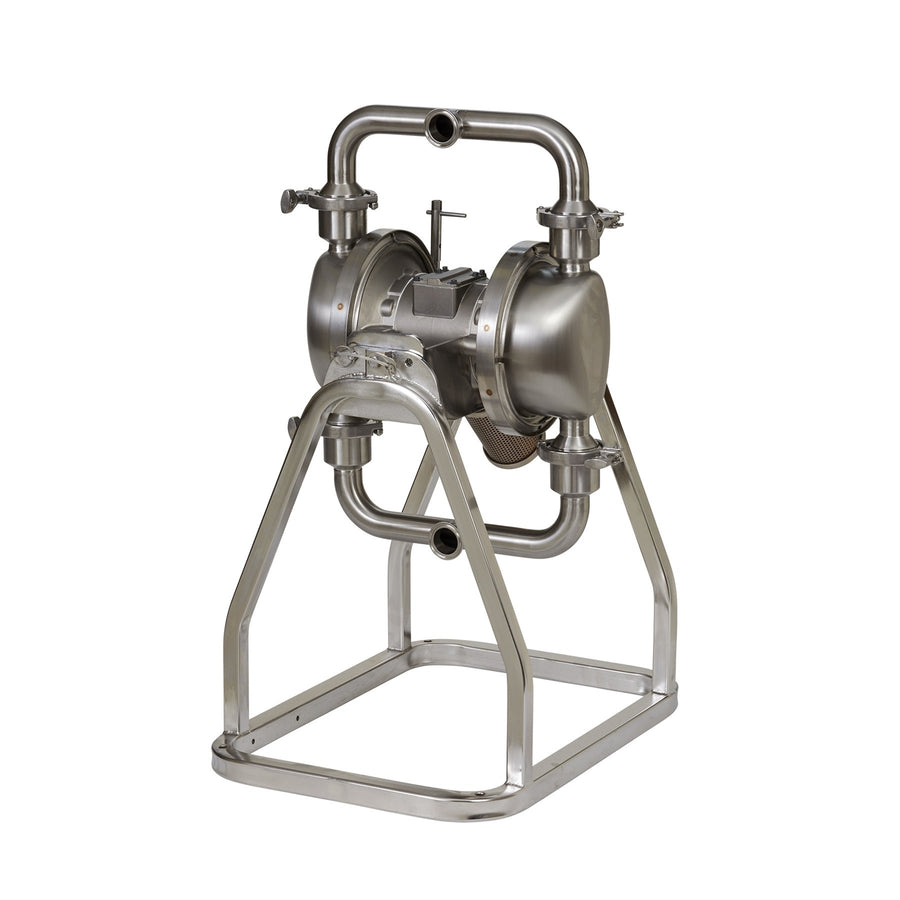

Graco SaniForce 2.0 HS Series Pneumatic Diaphragm Pump, 2150, S01A, SSA, SS, CW, E, C21 — SP2B.0000
- OEM / SKU
- SP2B.0000
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$15,750.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SP2B.0000
SaniForce 2.0 HS Series Pneumatic Diaphragm Pump, 2150, S01A, SSA, SS, CW, E, C21
Graco catalog description: SANIFORCE AODD PUMP,2150HS.PS01ASSASSCWEOEP21
Product group: SaniForce 3-A Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (50.8 mm, 5.08 cm) |
| Fluid Outlet Size | 50.8 mm (5.08 cm) |
| For Use With | Food, Personal Care |
| Maximum Air Consumption | 200 SCFM |
| Maximum Air Pressure | 120 psi (8.27 bar, 827 kPa, 0.827 MPa) |
| Maximum Cycle Rate | 135 CPM |
| Maximum Flow Rate | 568 L/min |
| Maximum Fluid Pressure | 120 psi (8.27 bar, 827 kPa, 0.827 MPa) |
| Maximum Operating Temperature | 180 °F (82 °C) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | -18 °C |
| Model | SaniForce |
| Overall Height | 35.7 in |
| Series | 2150 HS |
| Diaphragm Compatible Material | EPDM |
| UPC | 755652873938 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 34 × 28 × 48 in |
| Graco Shipping Weight | 161 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
