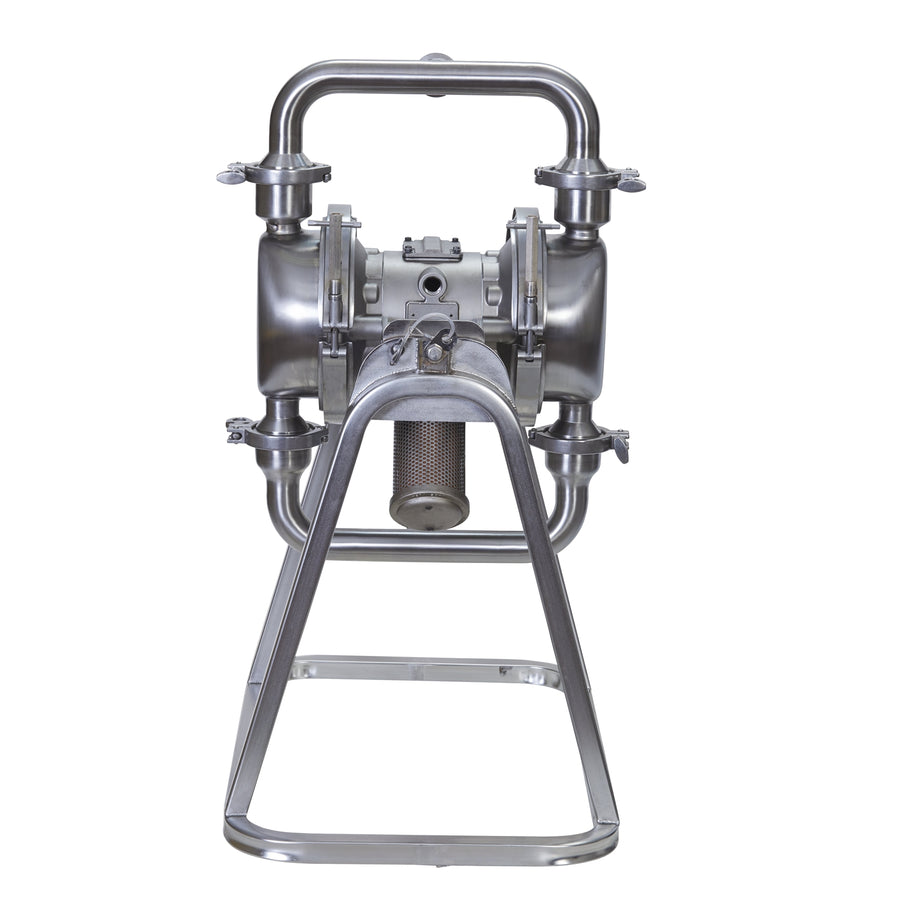

Graco SaniForce 1590, 1.5" HS SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms — SP15.0021
- OEM / SKU
- SP15.0021
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$14,900.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SP15.0021
SaniForce 1590, 1.5" HS SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms
Graco catalog description: SANIFORCE AODD PUMP,1590HS.PS01ASSASSPTPOEP21
Product group: SaniForce 3-A Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| For Use With | Food, Personal Care |
| Fluid Passage Size | 1.5 in (38 mm) |
| fluid_passage_size_cm | 3.8 |
| Maximum Air Consumption | 150 SCFM |
| Maximum Air Pressure | 120 psi (8 bar) |
| Maximum Flow Rate | 397.5 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 120 psi (8 bar) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | SaniForce |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 165 CPM |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 1.5-inch |
| UPC | 755652876984 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 34.5 × 28.5 × 49.5 in |
| Graco Shipping Weight | 135 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
