Graco

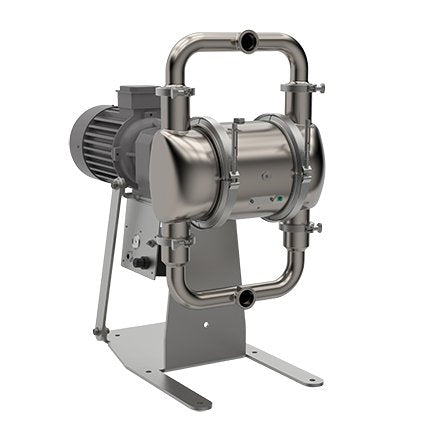

Graco SaniForce 2150 PH 2 in. (51 mm) SS Electric Pump; 5.0 Hp ATEX Motor, No CMPSR, Center Port Tri-Clamp, SS Center, SS Seat, PT Ball, PS Diaphragm — SE2B.1494
- OEM / SKU
- SE2B.1494
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Jan 21 – Jan 28
Price
$32,570.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SE2B.1494
SaniForce 2150 PH 2 in. (51 mm) SS Electric Pump; 5.0 Hp ATEX Motor, No CMPSR, Center Port Tri-Clamp, SS Center, SS Seat, PT Ball, PS Diaphragm
Graco catalog description: SANIFORCE EODD PUMP,2150PH.ES14CSSASSPTPSEP21
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 3/8 in |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 2 in (50.8 mm, 5.08 cm) |
| Fluid Outlet Size | 50.8 mm (5.08 cm) |
| For Use With | Food, Personal Care, Pharmaceutical |
| Maximum Air Pressure | 100 psi (6.89 bar, 689 kPa, 0.689 MPa) |
| Maximum Fluid Pressure | 100 psi (6.89 bar, 689 kPa, 0.689 MPa) |
| Maximum Operating Temperature | 220 °F (104 °C) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | 40 °F (4.4 °C) |
| Model | SaniForce |
| Series | 2150 PH |
| Diaphragm Compatible Material | PTFE |
| UPC | 755652913429 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
