Graco

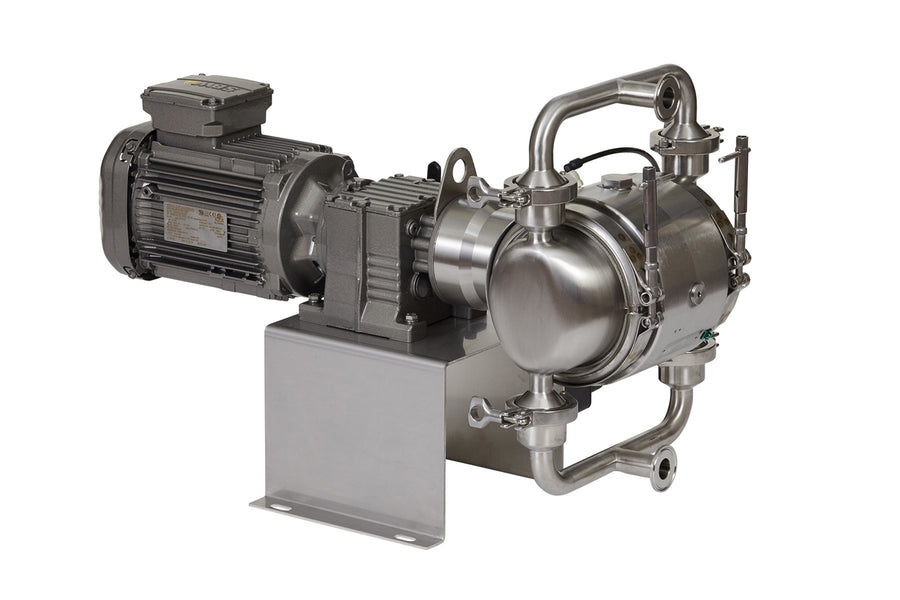

Graco SaniForce 2.0 HS Series Electric Diaphragm Pump, 1040Electric, S04A, SSA, SS, PT, PS, C21 — SE1B.0014
- OEM / SKU
- SE1B.0014
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Jan 20 – Jan 27
Price
$18,390.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SE1B.0014
SaniForce 2.0 HS Series Electric Diaphragm Pump, 1040Electric, S04A, SSA, SS, PT, PS, C21
Graco catalog description: SANIFORCE EODD PUMP,1040HS.ES04ASSASSPTPSEP21
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 3/8 in |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 1 in (25.4 mm, 2.54 cm) |
| Fluid Outlet Size | 25.4 mm (2.54 cm) |
| For Use With | Food, Personal Care |
| Maximum Air Pressure | 60 psi (4.14 bar, 414 kPa, 0.414 MPa) |
| Maximum Fluid Pressure | 70 psi (4.8 bar, 480 kPa, 0.48 MPa) |
| Maximum Operating Temperature | 220 °F (104 °C) |
| Maximum Solid Size | 0.44 in (11.2 mm, 1.12 cm) |
| Minimum Operating Temperature | 40 °F (4.4 °C) |
| Model | SaniForce |
| Series | 1040 |
| Diaphragm Compatible Material | PTFE |
| UPC | 755652919537 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
