Graco

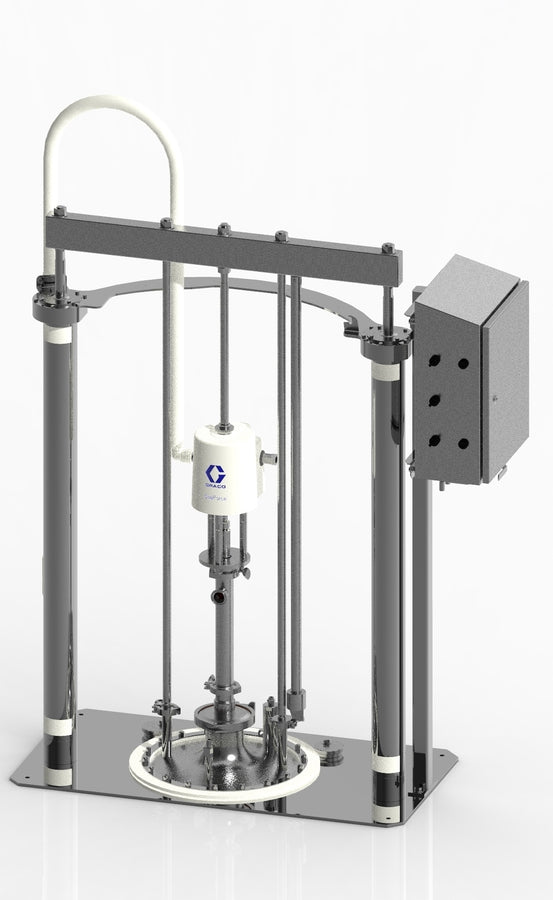

Graco SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Static Wiper, Enclosed Pneumatic Controls — SDU.A04BBC2AA0C21

Price $52,730.00 USD

Need to confirm the part?

Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.

Part details

Graco part number: SDU.A04BBC2AA0C21

SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Static Wiper, Enclosed Pneumatic Controls

Graco catalog description: SANIFORCE DRUM UNLOADER SYSTEM,RAM,HYGIENIC

Product group: SaniForce Drum Unloaders

Plate	Static Wiper Concave Plate, Drum (22.25 in. seal for use with 21.5 in. drum)
Ram Material	Stainless Steel
Ambient/Warm Melt/Hot Melt	90
Compatible Drum Height	40 in (1016 mm, 101.6 cm)
Compatible Drum Inside Diameter	21.5-23.25 in (546-590 mm, 54.6-59.0 cm)
Maximum Flow Rate	15.1 L/min
Maximum Fluid Pressure	650 psi (44.8 bar, 4480 kPa)
Maximum Air Inlet Pressure	100 psi (6.89 bar, 690 kPa, 7.03 kg/cm²)
Maximum Height	116 in (9.7 ft, 2946 mm, 295 cm, 2.95 m)
Maximum Operating Temperature	90 °F (32 °C)
Maximum Working Pressure	650 psi (44.8 bar, 4480 kPa, 4.5 MPa)
Minimum Height	76.2 in (6.4 ft, 1935 mm, 194 cm, 1.94 m)
Model	SaniForce 2.0
Overall Depth	27.5 in (699 mm, 69.8 cm)
Overall Width	57.5 in (1461 mm, 146 cm)
Series	Drum Unloader
Weight	23.9712 kg
Container Type	Drum
System Controller Type	Enclosed Pneumatic, SST Inflatable
UPC	755652953968
Country of Origin	US
Unit of Measure	EA

Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
