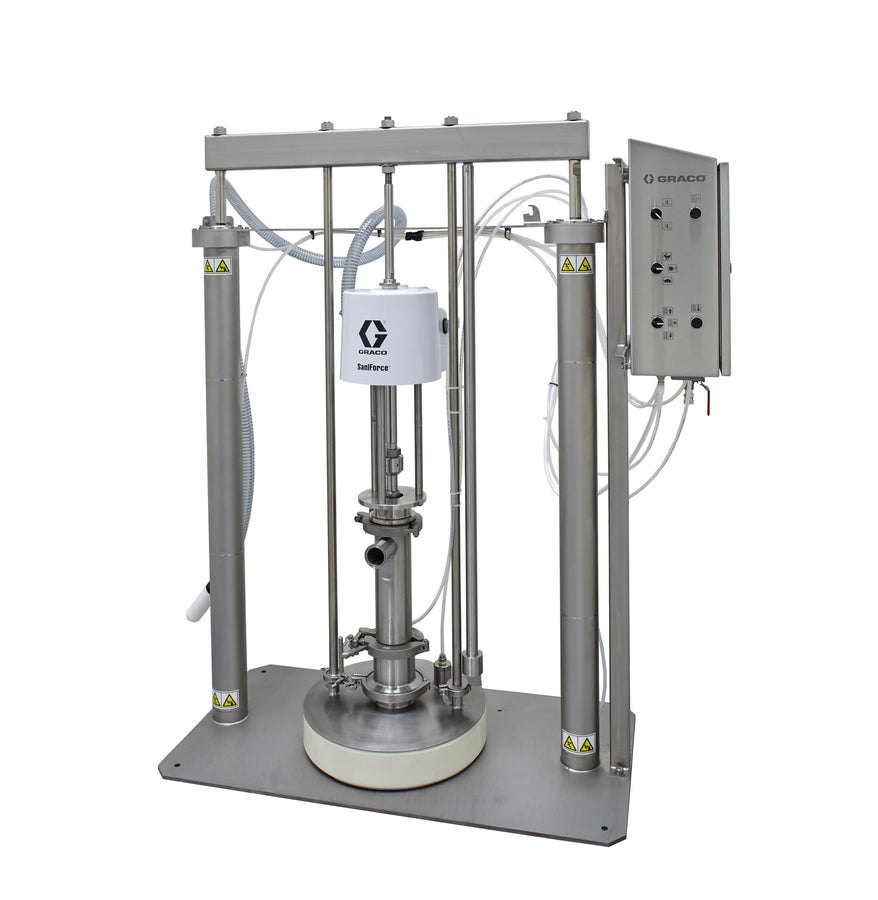

Graco SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Inflatable Seal, Enclosed Pneumatic Controls — SDU.A04AAA2AA0C21
- OEM / SKU
- SDU.A04AAA2AA0C21
- Part category
- Drum & Pail Unloaders
- Availability
- Est. factory ship Jan 20 – Jan 27
Price
$54,620.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: SDU.A04AAA2AA0C21
SaniForce Ram Unit, Stainless Steel Frame, 6:1 PP, Inflatable Seal, Enclosed Pneumatic Controls
Graco catalog description: SANIFORCE DRUM UNLOADER SYSTEM,RAM,HYGIENIC
Product group: SaniForce Drum Unloaders
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Plate | Inflatable Seal Concave Plate, Drum (20 in. seal for use with 21.5 in. to 23.25 in. drums) |
|---|---|
| Ram Material | Stainless Steel |
| Ambient/Warm Melt/Hot Melt | 90 |
| Compatible Drum Height | 40 in (1016 mm, 101.6 cm) |
| Compatible Drum Inside Diameter | 21.5-23.25 in (546-590 mm, 54.6-59.0 cm) |
| Maximum Flow Rate | 15.1 L/min |
| Maximum Fluid Pressure | 650 psi (44.8 bar, 4480 kPa) |
| Maximum Air Inlet Pressure | 100 psi (6.89 bar, 690 kPa, 7.03 kg/cm²) |
| Maximum Height | 116 in (9.7 ft, 2946 mm, 295 cm, 2.95 m) |
| Maximum Operating Temperature | 90 °F (32 °C) |
| Maximum Working Pressure | 650 psi (44.8 bar, 4480 kPa, 4.5 MPa) |
| Minimum Height | 76.2 in (6.4 ft, 1935 mm, 194 cm, 1.94 m) |
| Model | SaniForce 2.0 |
| Overall Depth | 27.5 in (699 mm, 69.8 cm) |
| Overall Width | 57.5 in (1461 mm, 146 cm) |
| Series | Drum Unloader |
| Weight | 23.9712 kg |
| Control Panel Type | Enclosed |
| Container Type | Drum |
| System Controller Type | Enclosed Pneumatic, SST Inflatable |
| UPC | 755652805519 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 35 × 62 × 76 in |
| Graco Shipping Weight | 625 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
