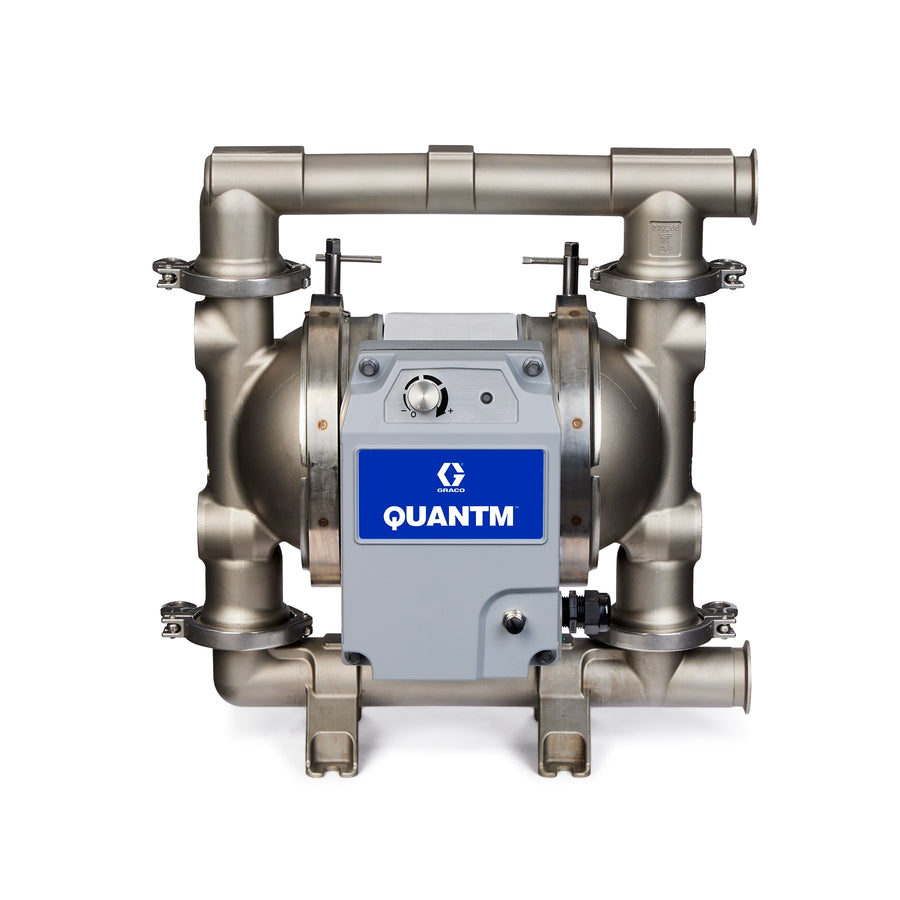

Graco QUANTM h80, 1.5" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, FK Ball, FK Diaphragm — HE80-0444
- OEM / SKU
- HE80-0444
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 5 – Nov 12
Price
$9,840.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE80-0444
QUANTM h80, 1.5" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, FK Ball, FK Diaphragm
Graco catalog description: QUANTM PUMP,QHD-FGFF3SSFKFKFKS130021
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | 316 Stainless Steel, End Port, Tri-Clamp |
|---|---|
| Fluid Passage Size | 1.5 in (38 mm) |
| Fluid Outlet Size | 51 mm |
| Fluid Inlet Size | 2 in (51 mm) |
| Maximum Flow Rate | 303 L/min |
| Maximum Fluid Operating Temperature | 275 °F (135 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.19 in (4.8 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 7.5 A |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2 in. |
| Pump Size | 1.5 in |
| UPC | 769946693676 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
