Graco QUANTM h80, 1.5"Hygienic DIN, FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm — HE80-0238
- OEM / SKU
- HE80-0238
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$10,700.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE80-0238

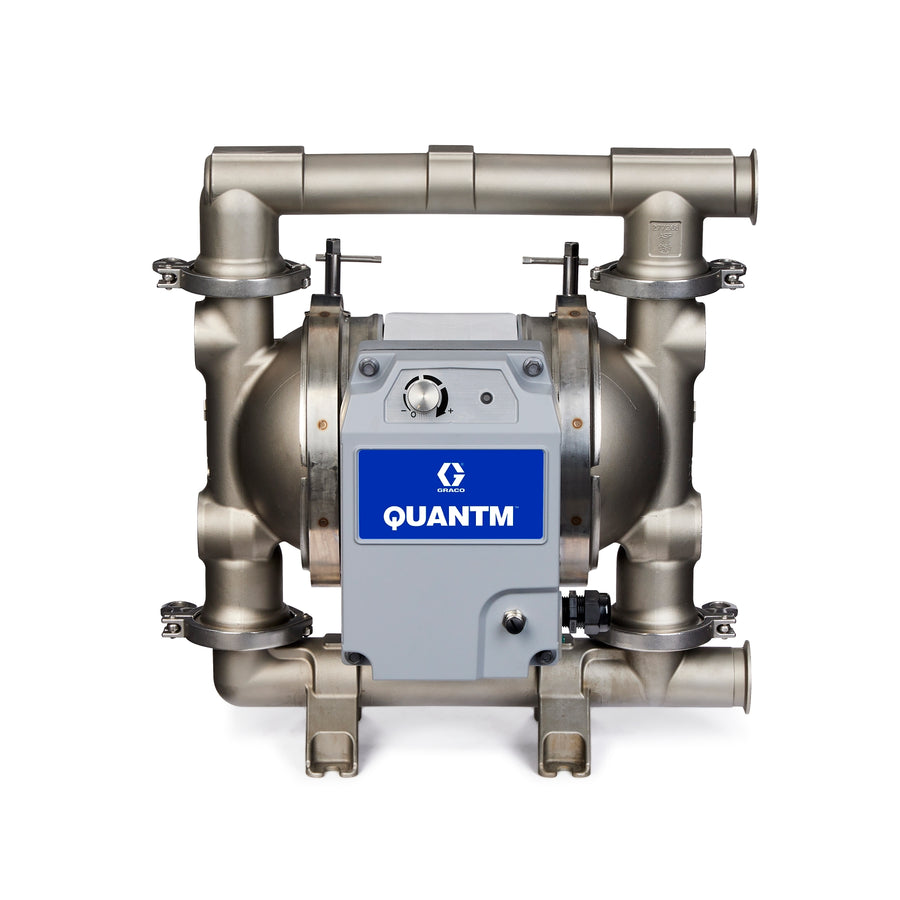

QUANTM h80, 1.5"Hygienic DIN, FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm
Graco catalog description: QUANTM PUMP,QHD-FGFF2SSPTPSPTS140021
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for HE80-0238
Documents Graco lists for part number HE80-0238.
- Instruction Manual QUANTM® Pumps, Hygienic Models, Instruction Manual 3A9286K
- Instruction Manual QUANTM Leak Sensors, Instruction 3A8861H
- Instruction Manual QUANTM™ Input/Output (I/O) Cable, Instructions 3A8982E
- Parts / Repair Manual QUANTM Pumps, Hygienic Models, Parts 3A9287K
- Parts / Repair Manual QUANTM® Electric Motor, Repair-Parts Manual 3A7637J
- Parts / Repair Manual QUANTM Control Board Replacement Kits, Parts 407182C
- Brochure QUANTM Brochure 300884
Specifications
| Fluid Section | 316 Stainless Steel, End Port, Hygienic DIN |
|---|---|
| Fluid Passage Size | 1.5 in (38 mm) |
| Fluid Outlet Size | 38 mm |
| Fluid Inlet Size | 1.5 in (38 mm) |
| Maximum Flow Rate | 303 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.19 in (4.8 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 15 A |
| Surface Finish | 125 Ra |
| Weight | 54.4 kg |
| Pump Size | 1.5 in |
| UPC | 769946697360 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 32.5 × 33.6 in |
| Graco Shipping Weight | 165 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
