Graco

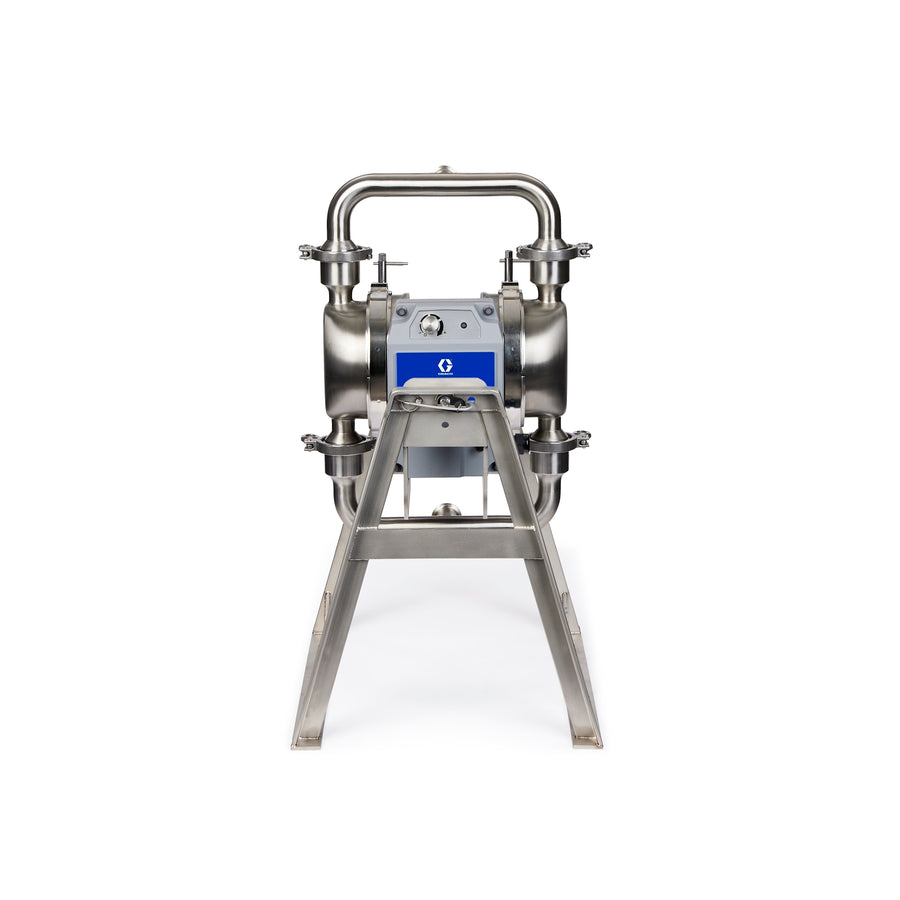

Graco QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, EP Ball, EO Diaphragm — HE80-0177
- OEM / SKU
- HE80-0177
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$18,790.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE80-0177
QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, EP Ball, EO Diaphragm
Graco catalog description: QUANTM PUMP,QHD-PHFF1SSEPEOEPSSA0031
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
|---|---|
| Fluid Passage Size | 1.5 in (38 mm) |
| Fluid Outlet Size | 38 mm |
| Fluid Inlet Size | 1.5 in (38 mm) |
| Maximum Flow Rate | 303 L/min |
| Maximum Fluid Operating Temperature | 250 °F (121 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.5 in (12.7 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 7.5 A |
| Surface Finish | 20 Ra |
| Tri-Clamp Connection Size | 1.5 in. |
| Pump Size | 1.5 in |
| UPC | 769946696516 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
