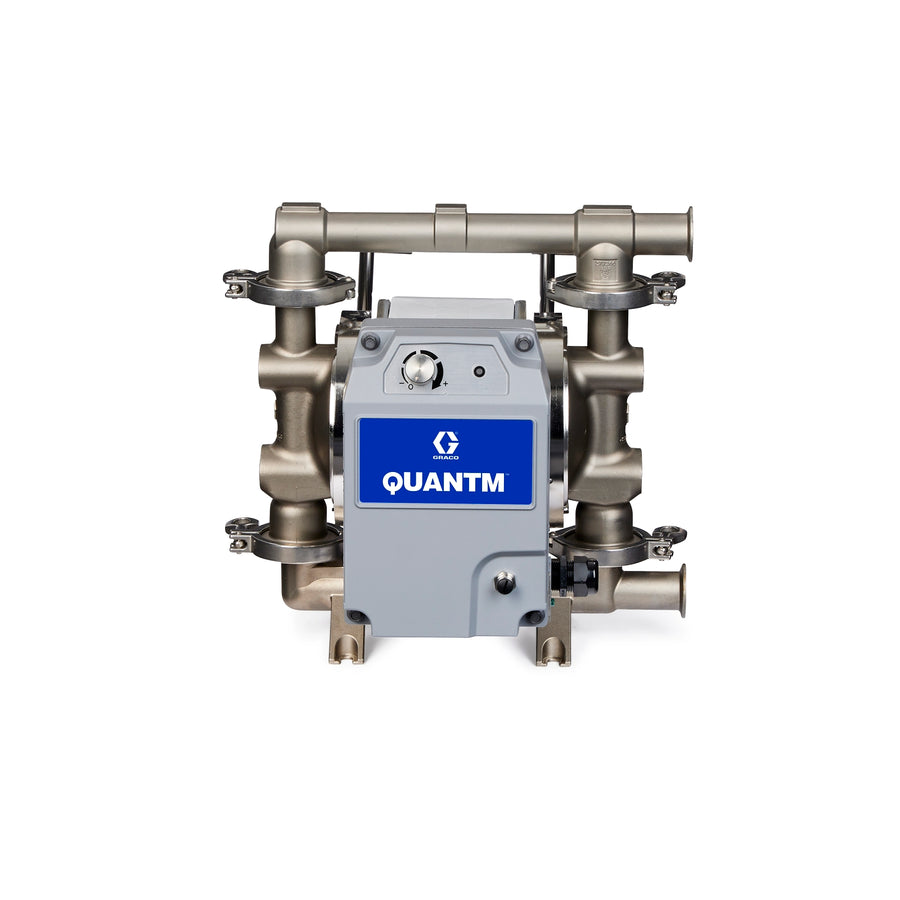

Graco QUANTM h30, 1"Hygienic DIN, FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, SP Ball, SP Diaphragm — HE30-0082
- OEM / SKU
- HE30-0082
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 5 – Nov 12
Price
$7,160.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE30-0082
QUANTM h30, 1"Hygienic DIN, FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, SP Ball, SP Diaphragm
Graco catalog description: QUANTM PUMP,QHC-FGFF2SSSPSPEPS140021
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Fluid Section | 316 Stainless Steel, End Port, Hygienic DIN |
|---|---|
| Fluid Passage Size | 1 in (25 mm) |
| Fluid Outlet Size | 25 mm |
| Fluid Inlet Size | 1 in (25 mm) |
| Maximum Flow Rate | 114 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.125 in (3.2 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 10 A |
| Surface Finish | 125 Ra |
| Pump Size | 1 in |
| UPC | 769946288551 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
