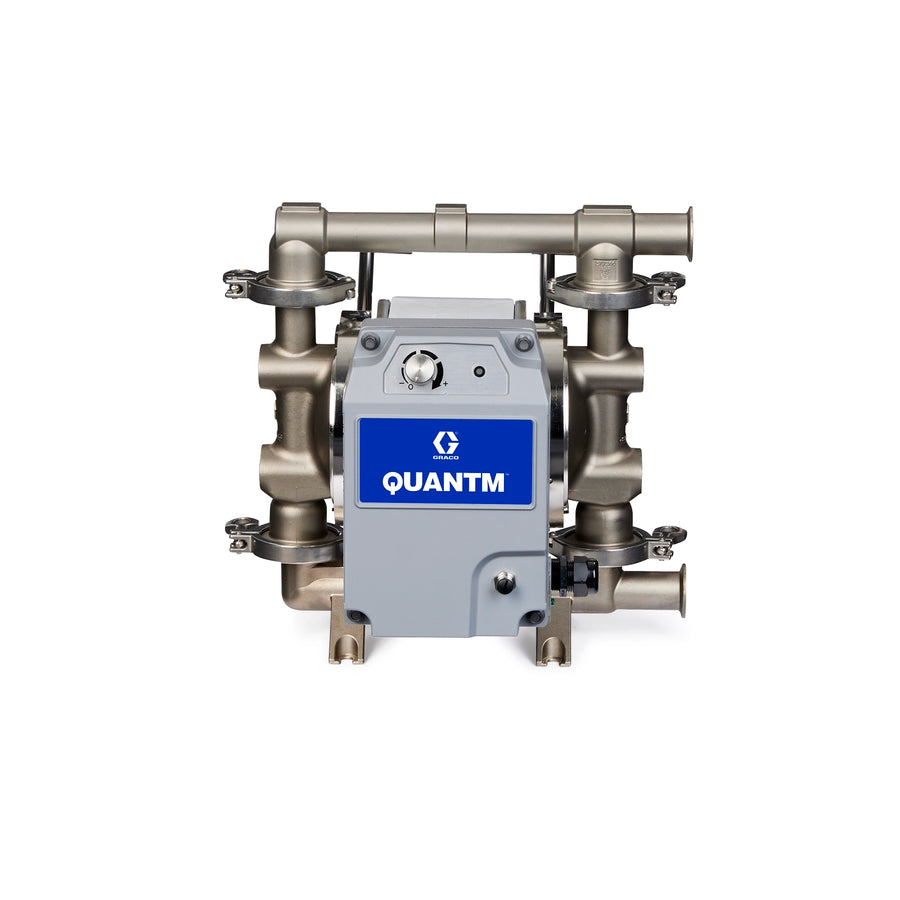

Graco QUANTM h30, 1" FG SST Electric Diaphragm Pump, 100-120 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm — HE30-0010
- OEM / SKU
- HE30-0010
- Part category
- Diaphragm Pumps
- Availability
- In stock: 1 available
Price
$6,770.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE30-0010
QUANTM h30, 1" FG SST Electric Diaphragm Pump, 100-120 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm
Graco catalog description: QUANTM PUMP,QHC-FGFF5SSPTPSEPS130021
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for HE30-0010
Documents Graco lists for part number HE30-0010.
- Instruction Manual QUANTM® Pumps, Hygienic Models, Instruction Manual 3A9286K
- Instruction Manual QUANTM Leak Sensors, Instruction 3A8861H
- Instruction Manual QUANTM™ Input/Output (I/O) Cable, Instructions 3A8982E
- Parts / Repair Manual QUANTM Pumps, Hygienic Models, Parts 3A9287K
- Parts / Repair Manual QUANTM® Electric Motor, Repair-Parts Manual 3A7637J
- Parts / Repair Manual QUANTM Control Board Replacement Kits, Parts 407182C
- Brochure QUANTM Brochure 300884
Specifications
| Fluid Section | 316 Stainless Steel, End Port, Tri-Clamp |
|---|---|
| Fluid Passage Size | 1 in (25 mm) |
| Fluid Outlet Size | 38 mm |
| Fluid Inlet Size | 1.5 in (38 mm) |
| Maximum Flow Rate | 114 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.125 in (3.2 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 12 A |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 1.5 in. |
| Weight | 39.9 kg |
| Pump Size | 1 in |
| UPC | 769946287837 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 25 × 22.5 in |
| Graco Shipping Weight | 110 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
