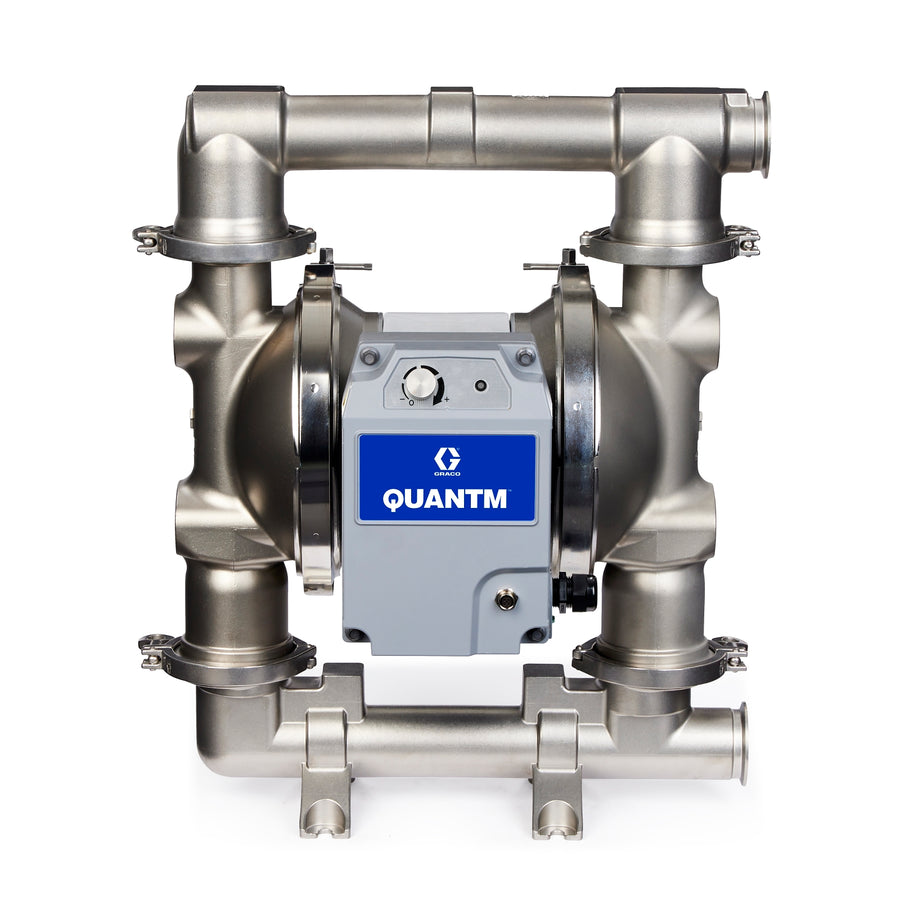

Graco QUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm — HE120-0005
- OEM / SKU
- HE120-0005
- Part category
- Diaphragm Pumps
- Availability
- In stock: 1 available
Price
$14,320.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: HE120-0005
QUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm
Graco catalog description: QUANTM PUMP,QHE-FGFF1SSPTPOPTS130021
Product group: Hygienic Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for HE120-0005
Documents Graco lists for part number HE120-0005.
- Instruction Manual QUANTM® Pumps, Hygienic Models, Instruction Manual 3A9286K
- Instruction Manual QUANTM Leak Sensors, Instruction 3A8861H
- Instruction Manual QUANTM™ Input/Output (I/O) Cable, Instructions 3A8982E
- Parts / Repair Manual QUANTM Pumps, Hygienic Models, Parts 3A9287K
- Parts / Repair Manual QUANTM® Electric Motor, Repair-Parts Manual 3A7637J
- Parts / Repair Manual QUANTM Control Board Replacement Kits, Parts 407182C
- Brochure QUANTM Brochure 300884
Specifications
| Fluid Section | 316 Stainless Steel, End Port, Tri-Clamp |
|---|---|
| Fluid Passage Size | 2 in (51 mm) |
| Fluid Outlet Size | 64 mm |
| Fluid Inlet Size | 2-1/2 in (64 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 60 psi (4.14 bar) |
| Maximum Solid Size | 0.25 in (6.4 mm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | QUANTM |
| Cord Length | 15 ft (4.57 m) |
| Maximum Amperage | 7.5 A |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2.5 in. |
| Weight | 77.1 kg |
| Pump Size | 2 in |
| UPC | 769946355765 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 19 × 32 × 33.5 in |
| Graco Shipping Weight | 215 lb |
