Graco

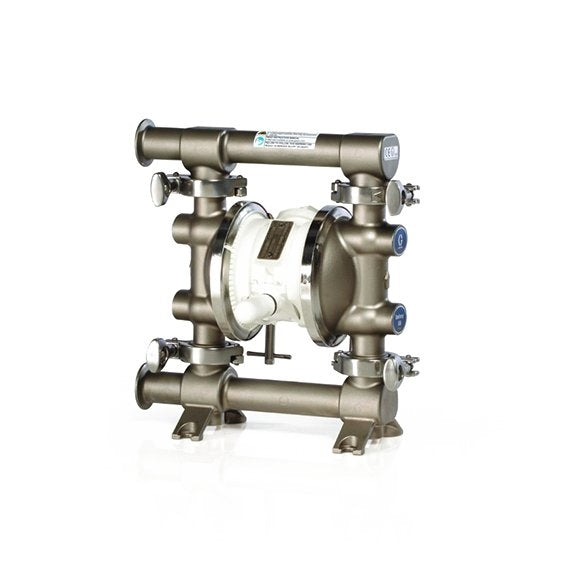

Graco SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PT Diaphragms — FD6111
- OEM / SKU
- FD6111
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 5 – Dec 12
Price
$4,080.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: FD6111
SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PT Diaphragms
Graco catalog description: SANIFORCE AODD PUMP,515FG-PP01AS14SSPTPTPT21
Product group: SaniForce FDA Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for FD6111
Documents Graco lists for part number FD6111.
- Parts / Repair Manual SaniForce 515 Diaphragm Pump, Instructions/Parts 3A1973U
- Brochure Saniforce 2.0 Air-Operated Double Diaphragm Pumps Brochure 320462
Specifications
| Air Exhaust Port Size | 3/8 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/4 in |
| For Use With | Food and Personal Care |
| Fluid Passage Size | 1/2 in (12.7 mm) |
| fluid_passage_size_cm | 1.27 |
| Maximum Air Consumption | 28 SCFM |
| Maximum Air Pressure | 100 psi (6.9 bar) |
| Maximum Flow Rate | 61 L/min |
| Maximum Fluid Operating Temperature | 220 °F (104 °C) |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Solid Size | 0.093 in (2.4 mm, 0.24 cm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | SaniForce |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 182 CPM |
| Surface Finish | 125 Ra |
| UPC | 633955677791 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 13.2 × 7.2 × 14.4 in |
| Graco Shipping Weight | 23.7 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
