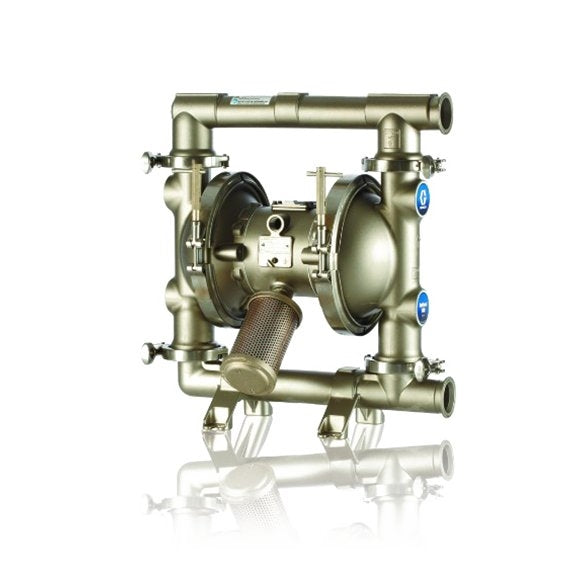

Graco SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms — FD2211
- OEM / SKU
- FD2211
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 5 – Nov 12
Price
$8,030.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: FD2211
SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms
Graco catalog description: SANIFORCE AODD PUMP,1590FG-PS01AS13SSPTPTEP21
Product group: SaniForce FDA Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for FD2211
Documents Graco lists for part number FD2211.
- Brochure Saniforce 2.0 Air-Operated Double Diaphragm Pumps Brochure 320462
- Safety Data Sheet Loctite 222MS Low Strength Threadlocker, Safety Data Sheet MSD199
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| For Use With | Food and Personal Care |
| Fluid Passage Size | 1.5 in (38 mm) |
| fluid_passage_size_cm | 3.8 |
| Maximum Air Consumption | 130 SCFM |
| Maximum Air Pressure | 120 psi (8 bar) |
| Maximum Flow Rate | 379 L/min |
| Maximum Fluid Operating Temperature | 180 °F (82 °C) |
| Maximum Fluid Pressure | 120 psi (8 bar) |
| Maximum Solid Size | 0.1875 in (4.8 mm, 0.48 cm) |
| Minimum Fluid Operating Temperature | -40 °F (-40 °C) |
| Model | SaniForce |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 200 CPM |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2-inch |
| UPC | 633955194939 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 19.2 × 25.2 × 28.8 in |
| Graco Shipping Weight | 108 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
