Graco

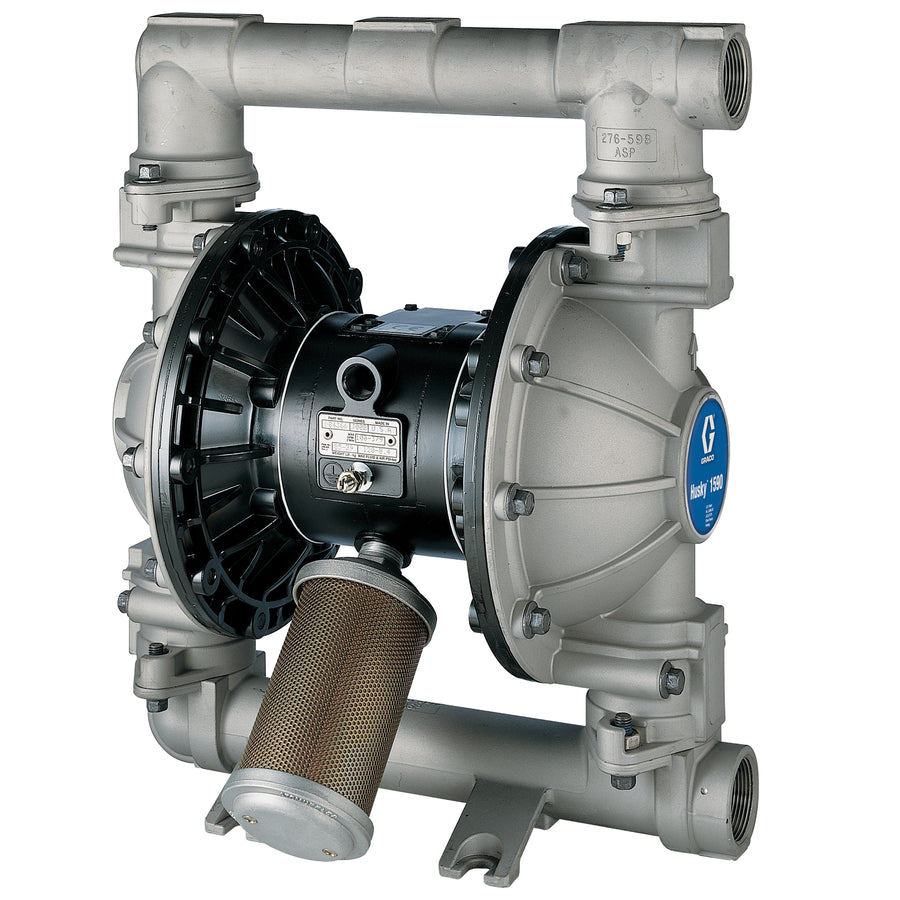

Graco Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, SP Seat, Ball & Diaphragm — DBR666
- OEM / SKU
- DBR666
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$6,920.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: DBR666
Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, SP Seat, Ball & Diaphragm
Graco catalog description: HUSKY PUMP,1590S-PA01AS5-1SPSPSPPT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 1/2 in |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 1-1/2 in (38.1 mm, 3.81 cm) |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size | 38.1 mm (3.81 cm) |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption | 125 SCFM |
| Maximum Air Pressure | 120 psi (8.27 bar, 827 kPa, 0.827 MPa) |
| Maximum Cycle Rate | 200 CPM |
| Maximum Flow Rate | 379 L/min |
| Maximum Fluid Pressure | 120 psi (8.27 bar, 827 kPa, 0.827 MPa) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.1875 in (4.763 mm, 0.4763 cm) |
| Model | Husky |
| Series | 1590 |
| Diaphragm Compatible Material | Santoprene |
| UPC | 755652398769 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 25 × 19 × 32 in |
| Graco Shipping Weight | 100 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
