Graco

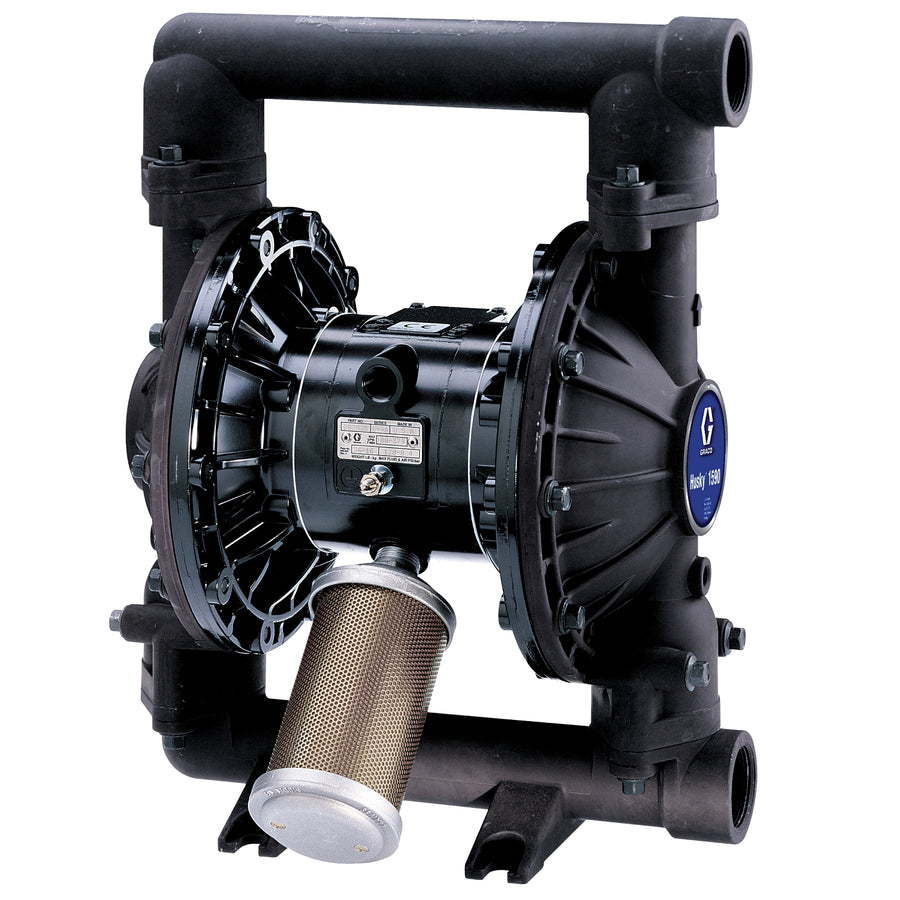

Graco Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm — DBC311
- OEM / SKU
- DBC311
- Part category
- Diaphragm Pumps
- Availability
- In stock: 14 available
Price
$3,310.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: DBC311
Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm
Graco catalog description: HUSKY PUMP,1590A,SS/PT/PT/PT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for DBC311
Documents Graco lists for part number DBC311.
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Fluid Outlet Size | 38.1 mm |
| Maximum Air Consumption | 125 SCFM |
| Maximum Air Pressure | 120 psi (8 bar) |
| Fluid Inlet Size | 1-1/2 in (38.1 mm) |
| Maximum Flow Rate | 379 L/min |
| Maximum Fluid Pressure | 120 psi (8 bar) |
| Maximum Operating Temperature | 180 °F (82 °C) |
| Maximum Solid Size | 0.1875 in (4.763 mm, 0.4763 cm) |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 200 CPM |
| UPC | 633955868946 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 18 × 12 × 24 in |
| Graco Shipping Weight | 44 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
