Graco

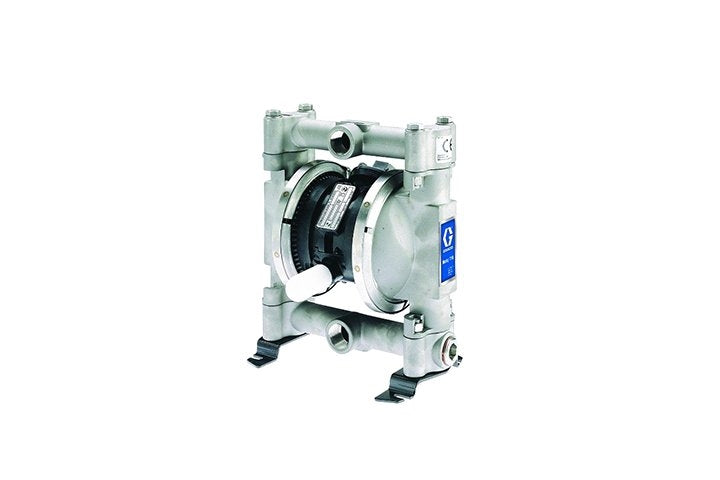

Graco Husky 716 SS Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm — D54211
- OEM / SKU
- D54211
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 20 – Nov 27
Price
$2,770.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: D54211
Husky 716 SS Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm
Graco catalog description: HUSKY PUMP,716S-PP01AS1ACPTPTPT0
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 3/8 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/4 in |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 19 mm |
| Maximum Air Consumption | 28 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3/4 in (19 mm) |
| Maximum Flow Rate | 61 L/min |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Maximum Operating Temperature | 225 °F (107 °C) |
| Maximum Solid Size | 0.09375 in (2.4 mm, 0.2383 cm) |
| Minimum Operating Temperature | 40 °F (4 °C) |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 400 CPM |
| UPC | 633955902992 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 7.2 × 7.2 × 12 in |
| Graco Shipping Weight | 20 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
