Graco

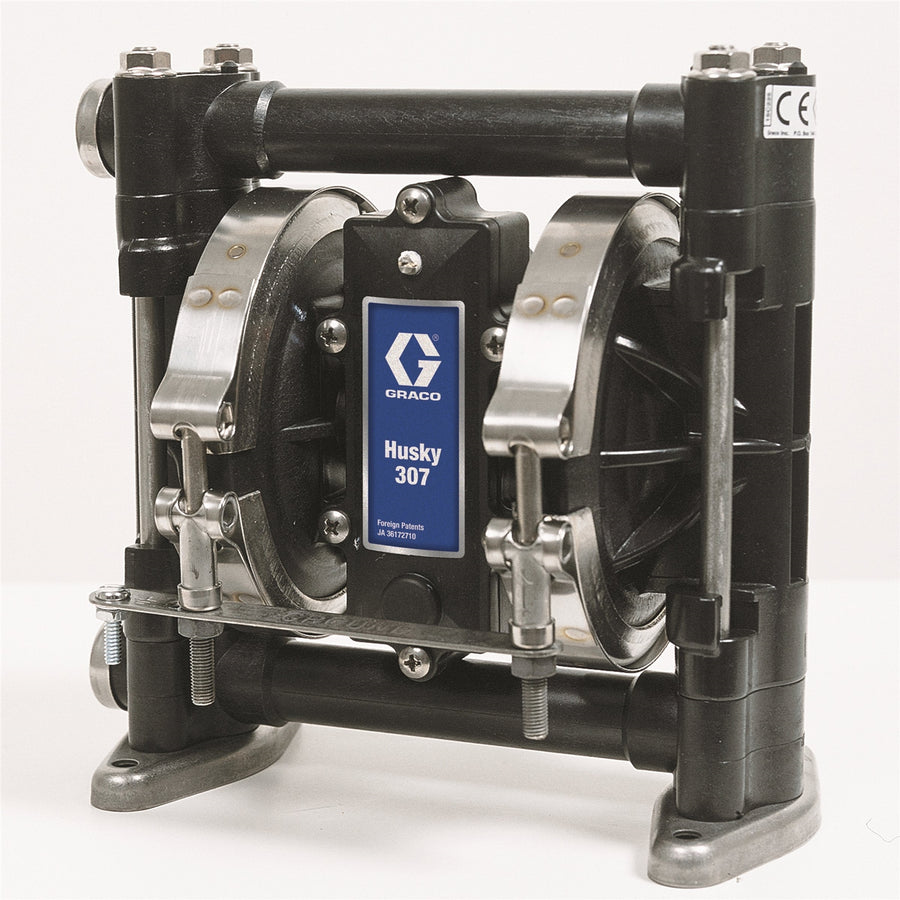

Graco Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm — D31311
- OEM / SKU
- D31311
- Part category
- Diaphragm Pumps
- Availability
- In stock: 19 available
Price
$1,060.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: D31311
Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm
Graco catalog description: HUSKY PUMP,307AC-PP01AAC3SSPTPTPT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for D31311
Documents Graco lists for part number D31311.
- Parts / Repair Manual 308553EN-ZAK, Manual, Husky 307 Air-Operated Diaphragm Pumps, Instruction-Parts 308553
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 3/8 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/4 in |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 9.525 mm |
| Maximum Air Consumption | 5.5 SCFM |
| Maximum Air Pressure | 100 psi (6.9 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3/8 in (9.525 mm) |
| Maximum Flow Rate | 24.6 L/min |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.0625 in (1.5875 mm, 0.1588 cm) |
| Minimum Operating Temperature | 40 °F (4 °C) |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 330 CPM |
| UPC | 633955653931 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 9.6 × 6 × 9.6 in |
| Graco Shipping Weight | 6 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
