Graco

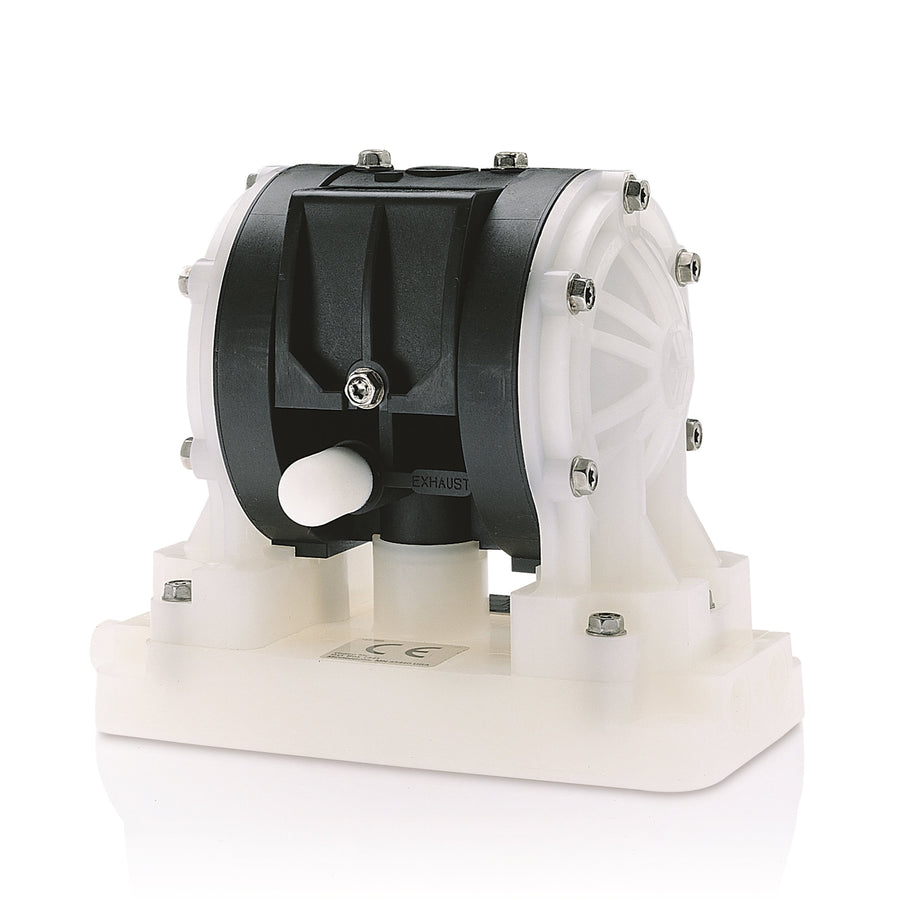

Graco Husky 205 PP Pump, PP Center Section, PP Balls & SP Diaphragm — D12096
- OEM / SKU
- D12096
- Part category
- Diaphragm Pumps
- Availability
- In stock: 48 available
Price
$490.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: D12096
Husky 205 PP Pump, PP Center Section, PP Balls & SP Diaphragm
Graco catalog description: HUSKY PUMP,205P-PP01AP5--PPSPPT-FK
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for D12096
Documents Graco lists for part number D12096.
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 1/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/4 in |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 6.35 mm |
| Maximum Air Consumption | 9 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 1/4 in (6.35 mm) |
| Maximum Flow Rate | 18.9 L/min |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.06 in (1.5 mm, 0.15 cm) |
| Model | Husky |
| Diaphragm Compatible Material | Santoprene |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 250 CPM |
| UPC | 633955941748 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 8.4 × 4.8 × 7.2 in |
| Graco Shipping Weight | 3.56 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
