Graco

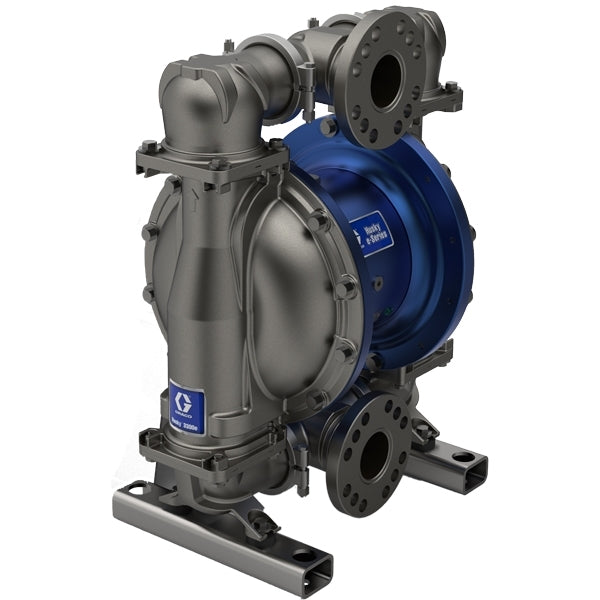

Graco Husky 3300e 3" SS Electric Diaphragm Pump; -- No Motor, No CMPSR, Cntr Port Flange, AL Center, GE Seat, GE Ball, GE Diaphragm — 659839

Price $22,720.00 USD

Need to confirm the part?

Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.

Part details

Graco part number: 659839

Husky 3300e 3" SS Electric Diaphragm Pump; -- No Motor, No CMPSR, Cntr Port Flange, AL Center, GE Seat, GE Ball, GE Diaphragm

Graco catalog description: HUSKY PUMP,3300S-E A94GS51GEGEGEBN

Product group: Electric Diaphragm Pumps

Air Inlet Size	0.375 in
Air Inlet Thread Gender	Female
Fluid Inlet Size	3 in (76.2 mm, 7.6 cm)
Fluid Inlet Thread Gender	Female
Fluid Outlet Size	76.2 mm (7.6 cm)
Fluid Outlet Thread Gender	Female
Maximum Air Pressure	80 psi (5.52 bar, 551.58 kPa, 0.55 MPa)
Maximum Amperage	None A
Maximum Cycle Rate	185 CPM
Maximum Flow Rate	567.75 L/min (1.2 GPD)
Maximum Fluid Pressure	80 psi (5.52 bar, 551.58 kPa, 0.55 MPa)
Maximum Operating Temperature	150 °F (65.56 °C)
Maximum Solid Size	0.5 in (12.70 mm, 1.27 cm)
Minimum Amperage	0 A
Minimum Operating Temperature	-40 °F (-40 °C)
Model	Husky
Overall Height	26.3 in
Power Rating	None HP
Series	3300e
Maximum Working Pressure	80 psi
Diaphragm Compatible Material	G.E.T. (Graco Engineered Thermoplastic)
UPC	755652995159
Country of Origin	US
Unit of Measure	EA

Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
