Graco

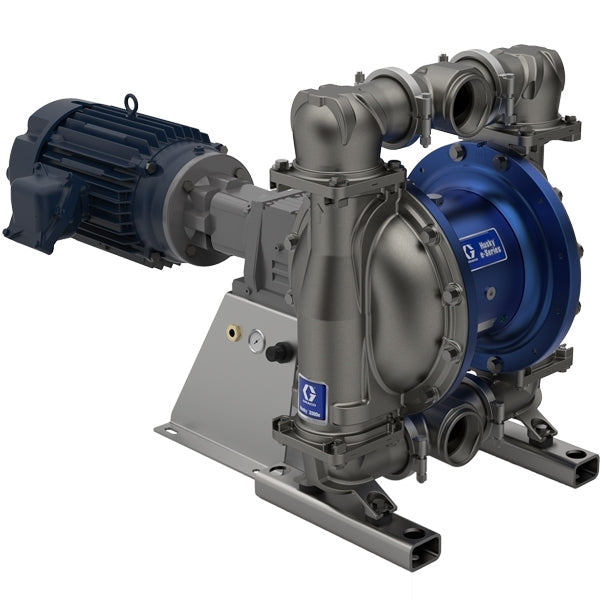

Graco Husky 3300e 3" SS Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, Cntr Port Flange, AL Center, SP Seat, SP Ball, SP Diaphragm — 659832
- OEM / SKU
- 659832
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Jan 20 – Jan 27
Price
$26,680.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 659832
Husky 3300e 3" SS Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, Cntr Port Flange, AL Center, SP Seat, SP Ball, SP Diaphragm
Graco catalog description: HUSKY PUMP,3300S-E A04AS51SPSPSPPT
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 0.375 in |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 3 in (76.2 mm, 7.6 cm) |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size | 76.2 mm (7.6 cm) |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Pressure | 80 psi (5.52 bar, 551.58 kPa, 0.55 MPa) |
| Maximum Amperage | 19.5/9.75A A |
| Maximum Cycle Rate | 185 CPM |
| Maximum Flow Rate | 681.30 L/min (1.2 GPD) |
| Maximum Fluid Pressure | 80 psi (5.52 bar, 551.58 kPa, 0.55 MPa) |
| Maximum Motor Speed | 1800 RPM |
| Maximum Operating Temperature | 180 °F (82.22 °C) |
| Maximum Solid Size | 0.5 in (12.70 mm, 1.27 cm) |
| Minimum Amperage | 0 A |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| Model | Husky |
| Overall Height | 26.3 in |
| Power Rating | 7.5 HP |
| Series | 3300e |
| Maximum Working Pressure | 80 psi |
| Diaphragm Compatible Material | Santoprene |
| UPC | 755652995081 |
| Country of Origin | US |
| Unit of Measure | EA |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
