Graco

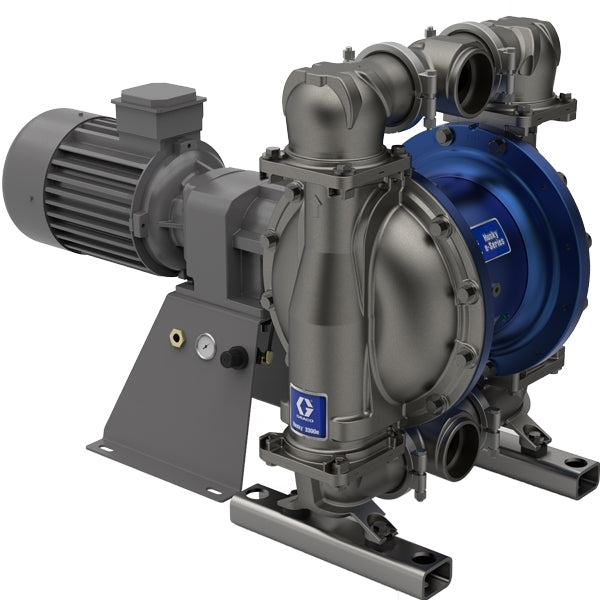

Graco Husky 3300e 3" SS Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, End Port NPT, AL Center, SS Seat, PT Ball, PT Diaphragm — 659801
- OEM / SKU
- 659801
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$26,370.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 659801
Husky 3300e 3" SS Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, End Port NPT, AL Center, SS Seat, PT Ball, PT Diaphragm
Graco catalog description: HUSKY PUMP,3300S-E A04AS1SSPTPTPT
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 0.375 in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 76.2 mm |
| Maximum Air Pressure | 80 psi (5.52 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3 in (76.2 mm) |
| Maximum Flow Rate | 833 L/min |
| Maximum Fluid Pressure | 80 psi (5.52 bar) |
| Maximum Operating Temperature | 220 °F (104.44 °C) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | 40 °F (4.44 °C) |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Amperage | None A |
| Maximum Cycle Rate | 185 CPM |
| Maximum Working Pressure | 80 psi |
| Power Rating | None HP |
| UPC | 755652994770 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 47 × 34 × 38.5 in |
| Graco Shipping Weight | 604 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
