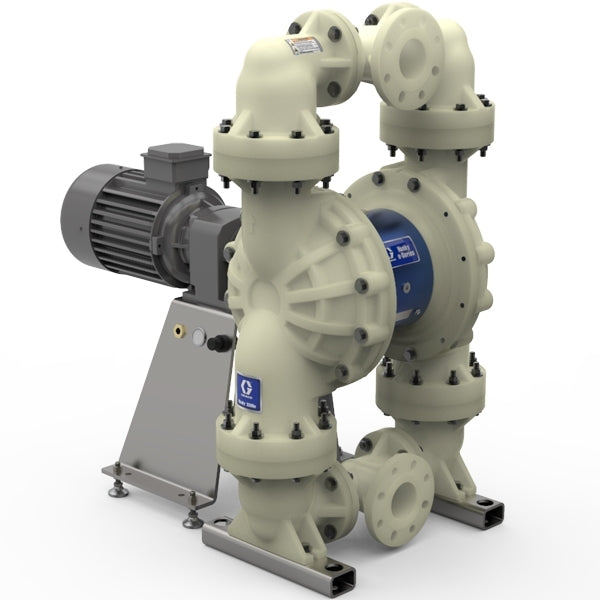

Graco Husky 3300e 3" PP Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, Cntr Port Flange, AL Center, PP Seat, CW Ball, SP Diaphragm — 659411

Price $19,670.00 USD

Need to confirm the part?

Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.

Part details

Graco part number: 659411

Husky 3300e 3" PP Electric Diaphragm Pump; 7.5 Hp AC Motor, No CMPSR, Cntr Port Flange, AL Center, PP Seat, CW Ball, SP Diaphragm

Graco catalog description: HUSKY PUMP,3300P-E A04AP1PPCWSPPT

Product group: Electric Diaphragm Pumps

Air Inlet Size	0.375 in
Air Inlet Thread Gender	Female
Fluid Inlet Size	3 in (76.2 mm, 7.6 cm)
Fluid Outlet Size	76.2 mm (7.6 cm)
Maximum Air Pressure	80 psi (5.52 bar, 551.58 kPa, 0.55 MPa)
Maximum Amperage	19.5/9.75A A
Maximum Cycle Rate	185 CPM
Maximum Flow Rate	681.30 L/min (1.2 GPD)
Maximum Fluid Pressure	80 psi (5.52 bar, 551.58 kPa, 0.55 MPa)
Maximum Motor Speed	1800 RPM
Maximum Operating Temperature	180 °F (82.22 °C)
Maximum Solid Size	0.5 in (12.70 mm, 1.27 cm)
Minimum Amperage	0 A
Minimum Operating Temperature	-40 °F (-40 °C)
Model	Husky
Overall Height	23.6 in
Power Rating	7.5 HP
Series	3300e
Maximum Working Pressure	80 psi
Diaphragm Compatible Material	Santoprene
UPC	769946147438
Country of Origin	US
Unit of Measure	EA
Shipping Carton (L × W × H)	55 × 48 × 52 in
Graco Shipping Weight	576 lb

Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
