Graco

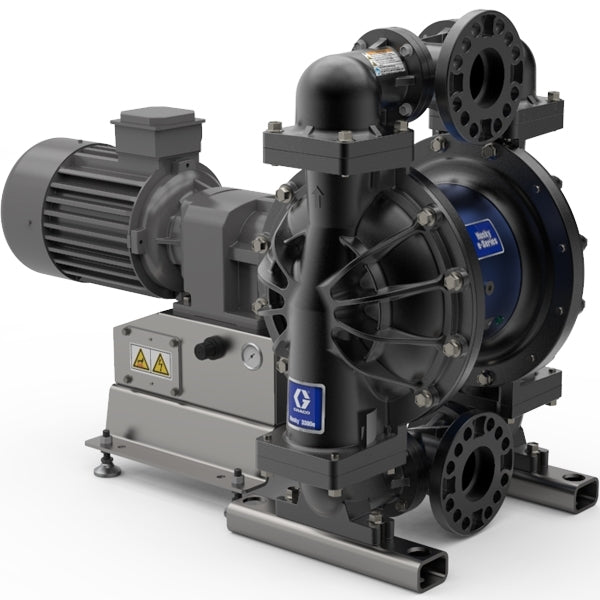

Graco Husky 3300e 3" AL Electric Diaphragm Pump; 7.5 Hp AC Motor, 240V CMPSR, End Port BSP, AL Center, GE Seat, GE Ball, GE Diaphragm — 659021
- OEM / SKU
- 659021
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Jan 21 – Jan 28
Price
$17,020.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 659021
Husky 3300e 3" AL Electric Diaphragm Pump; 7.5 Hp AC Motor, 240V CMPSR, End Port BSP, AL Center, GE Seat, GE Ball, GE Diaphragm
Graco catalog description: HUSKY PUMP,3300A-E A06AA2GEGEGEPT
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | None in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 76.2 mm |
| Maximum Air Pressure | 80 psi (5.52 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3 in (76.2 mm) |
| Maximum Flow Rate | 681 L/min |
| Maximum Fluid Pressure | 80 psi (5.52 bar) |
| Maximum Operating Temperature | 180 °F (82.22 °C) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | 10 °F (-12.22 °C) |
| Model | Husky |
| Diaphragm Compatible Material | Buna |
| Air Inlet Thread Gender | None |
| Maximum Amperage | 19.5/9.75A A |
| Maximum Cycle Rate | 185 CPM |
| Maximum Working Pressure | 80 psi |
| Power Rating | 7.5 HP |
| UPC | 755652994404 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 47 × 34 × 38.5 in |
| Graco Shipping Weight | 501 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
