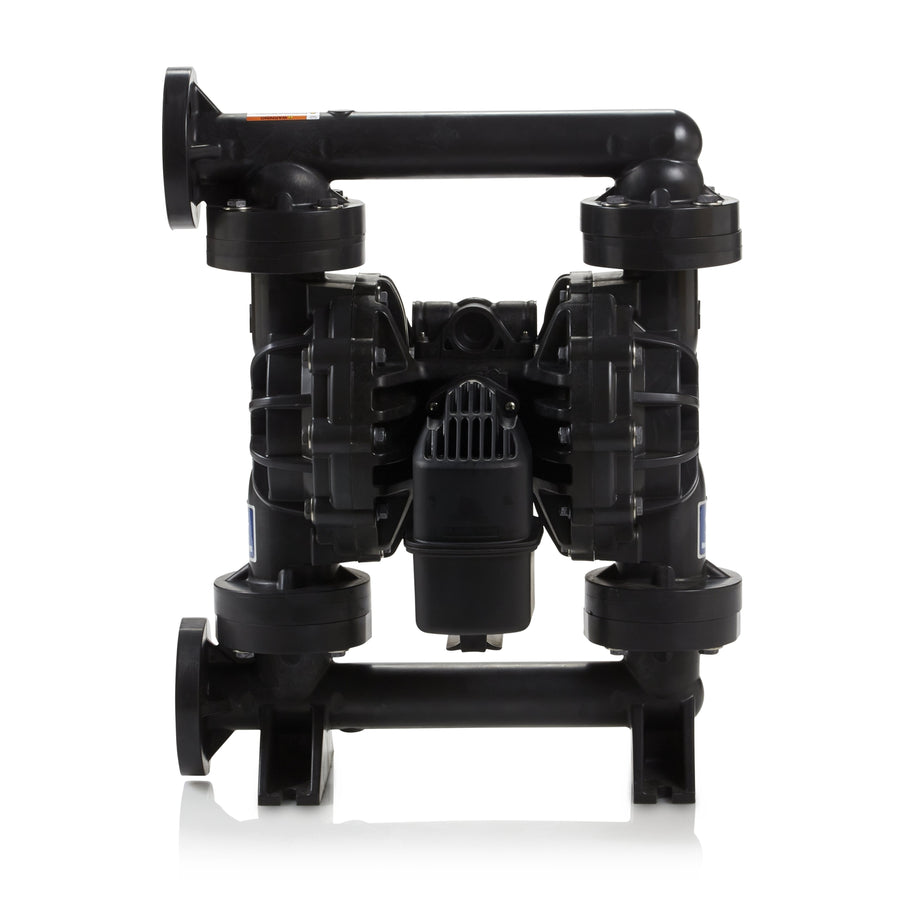

Graco Husky 15120 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PO Diaphragm — 654547
- OEM / SKU
- 654547
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$13,040.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 654547
Husky 15120 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PO Diaphragm
Graco catalog description: HUSKY PUMP,15120F,F2,PV/PT/PO/PT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 654547
Documents Graco lists for part number 654547.
- Instruction Manual Husky ™ 15120 Air-Operated Diaphragm Pump, Operation 3A2888D
- Parts / Repair Manual Husky™ 15120 Air-Operated Diaphragm Pump, Repair/Parts 3A2889G
Specifications
| Air Exhaust Port Size | 1 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 1-1/2 in (38.1 mm, 3.81 cm) |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size | 38.1 mm (3.81 cm) |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption | 85 SCFM |
| Maximum Air Pressure | 125 psi (8.6 bar, 860 kPa, 0.86 MPa) |
| Maximum Cycle Rate | 183 CPM |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Pressure | 125 psi (8.6 bar, 860 kPa, 0.86 MPa) |
| Maximum Operating Temperature | 225 °F (107 °C) |
| Maximum Solid Size | 0.25 in (6.35 mm, 0.635 cm) |
| Minimum Operating Temperature | 32 °F |
| Minimum Storage Temperature | 32 °F |
| Model | Husky |
| Series | 15120 |
| Diaphragm Compatible Material | PTFE |
| UPC | 633955680111 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 18 × 24 × 28.8 in |
| Graco Shipping Weight | 84 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
