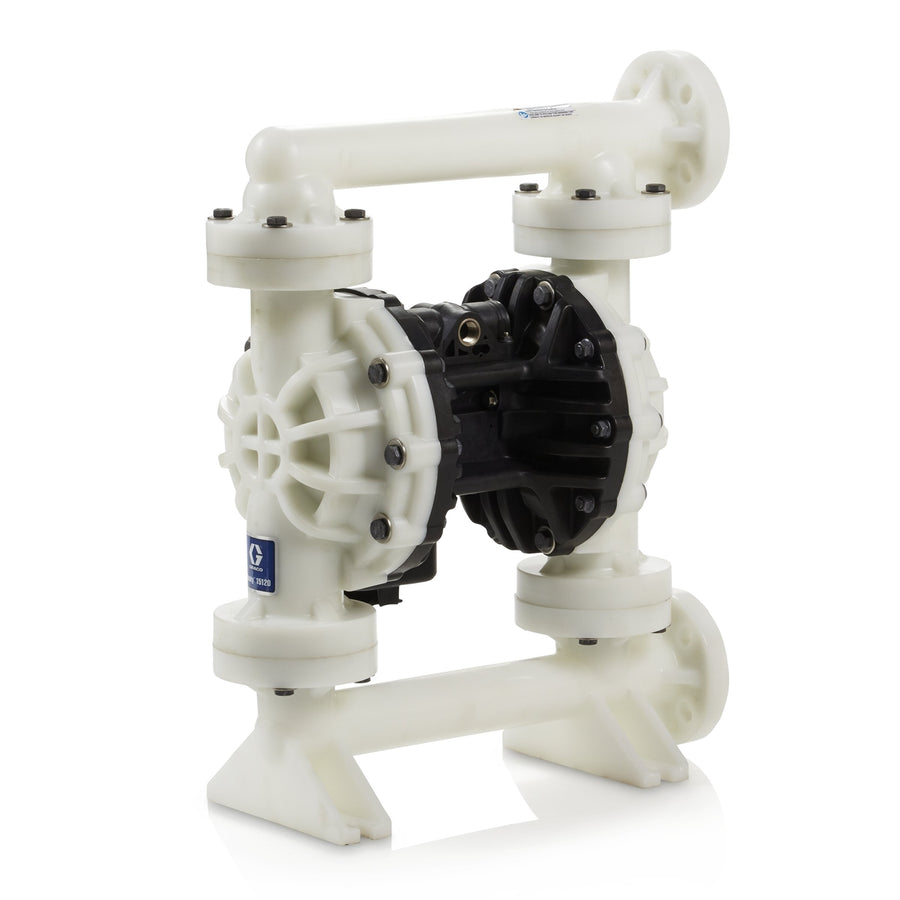

Graco Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, FKM Balls & FKM Diaphragm — 654502
- OEM / SKU
- 654502
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 20 – Nov 27
Price
$5,970.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 654502
Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, FKM Balls & FKM Diaphragm
Graco catalog description: HUSKY PUMP,15120P,P1,PP/FK/FK/PT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 654502
Documents Graco lists for part number 654502.
- Instruction Manual Husky ™ 15120 Air-Operated Diaphragm Pump, Operation 3A2888D
- Parts / Repair Manual Husky™ 15120 Air-Operated Diaphragm Pump, Repair/Parts 3A2889G
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 1 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 38.1 mm |
| Maximum Air Consumption | 85 SCFM |
| Maximum Air Pressure | 125 psi (8.6 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 1-1/2 in (38.1 mm) |
| Maximum Flow Rate | 454 L/min |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.25 in (6.35 mm, 0.635 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | Husky |
| Diaphragm Compatible Material | FKM |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 183 CPM |
| UPC | 633955679405 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 24 × 12 × 28.8 in |
| Graco Shipping Weight | 63 lb |
