Graco

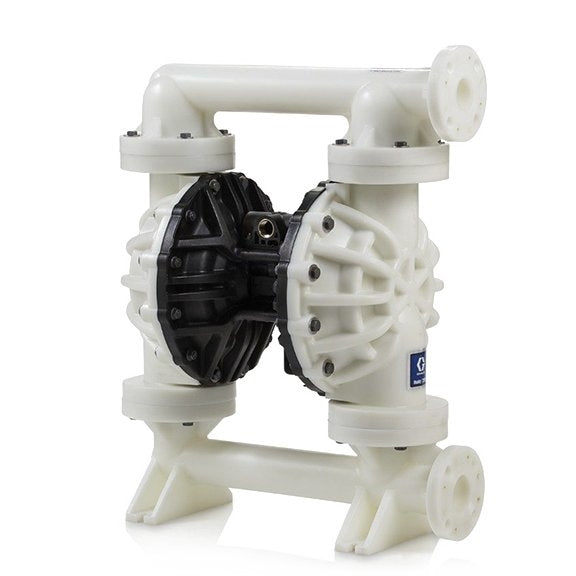

Graco Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm — 653504
- OEM / SKU
- 653504
- Part category
- Diaphragm Pumps
- Availability
- In stock: 1 available
Price
$7,810.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 653504
Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Graco catalog description: HUSKY PUMP,2200P,P1,PP/PT/PT/A
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 653504
Documents Graco lists for part number 653504.
- Instruction Manual Husky™ 2200 Air-Operated Diaphragm Pump, Operation 3A2578F
- Parts / Repair Manual Husky™ 2200 Air-Operated Diaphragm Pump, Repair/Parts 3A2714J
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 1 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 3/4 in |
| Fluid Outlet Size | 50.8 mm |
| Maximum Air Consumption | 140 SCFM |
| Maximum Air Pressure | 125 psi (8.6 bar) |
| Fluid Inlet Size | 2 in (50.8 mm) |
| Maximum Flow Rate | 757 L/min |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.375 in (9.525 mm, 0.9525 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 125 CPM |
| UPC | 633955241534 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20.4 × 31.2 × 39.6 in |
| Graco Shipping Weight | 118 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
