Graco

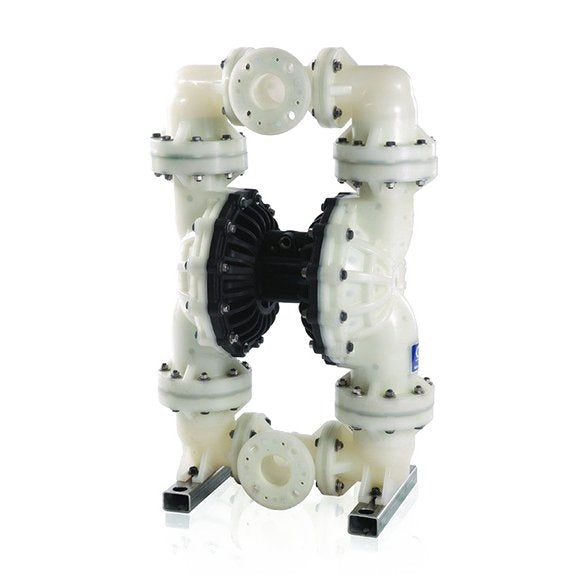

Graco Husky 3300 PP Pump, PP Center Section, SP Seats, PTFE Balls & SP Diaphragm — 652425
- OEM / SKU
- 652425
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$14,430.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 652425
Husky 3300 PP Pump, PP Center Section, SP Seats, PTFE Balls & SP Diaphragm
Graco catalog description: HUSKY PUMP,3300P-PP01AP1SPPTSPPT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 1 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 3/4 in |
| Fluid Outlet Size | 76.2 mm |
| Maximum Air Consumption | 275 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Size | 3 in (76.2 mm) |
| Maximum Flow Rate | 1060 L/min |
| Maximum Fluid Pressure | 100 psi (6.9 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | Husky |
| Diaphragm Compatible Material | Santoprene |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 103 CPM |
| UPC | 633955651777 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20 × 32.5 × 53 in |
| Graco Shipping Weight | 220 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
