Graco

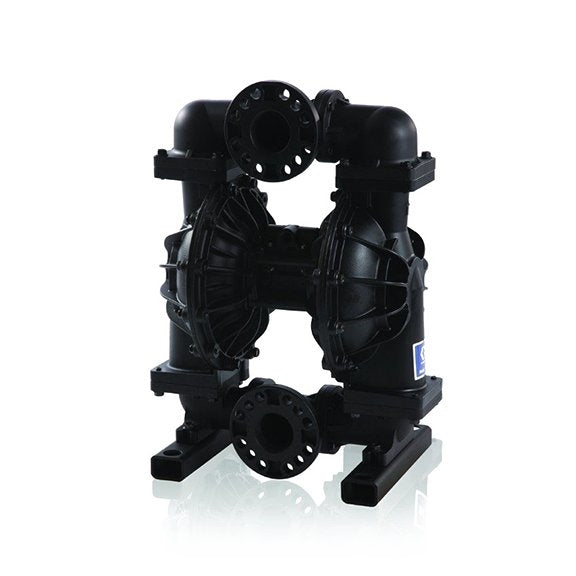

Graco Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm — 652134
- OEM / SKU
- 652134
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$5,460.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 652134
Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
Graco catalog description: HUSKY PUMP,3300A-PA01AA2GEGEGEBN
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 652134
Documents Graco lists for part number 652134.
- Instruction Manual Husky 3300 Diaphragm Pump, Operation 3A0410L
- Parts / Repair Manual 3300 Air-Operated Diaphragm Pump, Repair/Parts 3A0411T
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 1 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 3/4 in |
| Fluid Outlet Size | 76.2 mm |
| Maximum Air Consumption | 335 SCFM |
| Maximum Air Pressure | 125 psi (8.6 bar) |
| Fluid Inlet Size | 3 in (76.2 mm) |
| Maximum Flow Rate | 1136 L/min |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Maximum Solid Size | 0.5 in (12.7 mm, 1.27 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | Husky |
| Diaphragm Compatible Material | G.E.T. (Graco Engineered Thermoplastic) |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 103 CPM |
| UPC | 633955323698 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 20.4 × 31.2 × 39.6 in |
| Graco Shipping Weight | 176 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
