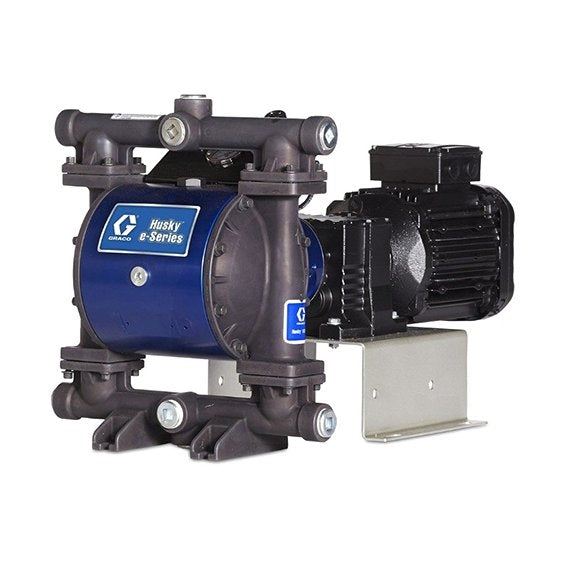

Graco Husky 1050e AL (NPT) Pump, 120V Compressor, BLDC Motor, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm — 648180
- OEM / SKU
- 648180
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Jan 20 – Jan 27
Price
$9,700.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 648180
Husky 1050e AL (NPT) Pump, 120V Compressor, BLDC Motor, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm
Graco catalog description: HUSKY PUMP,1050A-E,TP/AC/TP/5B
Product group: Electric Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Inlet Size | 3/8 in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 25.4 mm |
| Maximum Air Pressure | 80 psi (5.5 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 1 in (25.4 mm) |
| Maximum Flow Rate | 159 L/min |
| Maximum Fluid Pressure | 70 psi (4.8 bar) |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Maximum Solid Size | 0.125 in (3.175 mm, 0.3175 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | Husky |
| Diaphragm Compatible Material | TPE |
| Air Inlet Thread Gender | Female |
| Maximum Amperage | 5.2 A |
| Maximum Cycle Rate | 280 CPM |
| Power Rating | 2.2 HP |
| UPC | 755652302902 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 32 × 19 × 31 in |
| Graco Shipping Weight | 169 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
