Graco

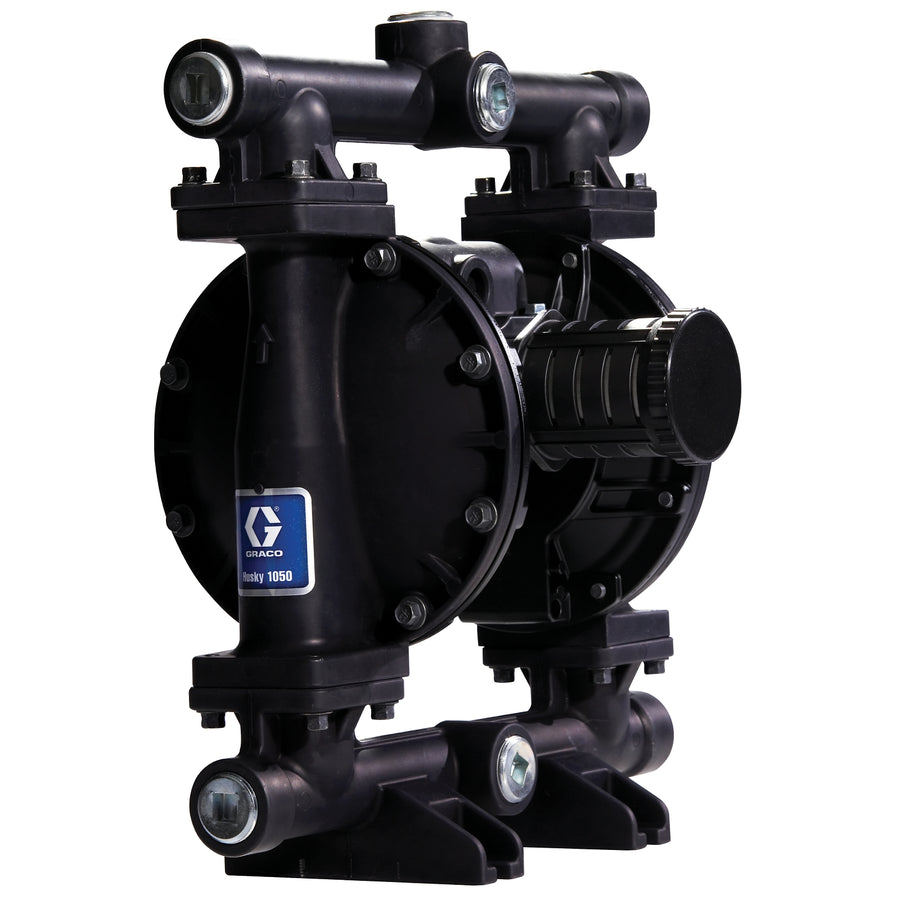

Graco Husky 1050 AL 1 in. (25.4 mm) BSPT Pump, Standard AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm — 647085
- OEM / SKU
- 647085
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Pending
Price
$2,050.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 647085
Husky 1050 AL 1 in. (25.4 mm) BSPT Pump, Standard AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Graco catalog description: HUSKY PUMP,1050A-PA01AA2PPPTPTPT
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 647085
Documents Graco lists for part number 647085.
- Brochure Process Equipment Brochure 300570
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Fluid Outlet Size | 25.4 mm |
| Maximum Air Consumption | 67 SCFM |
| Maximum Air Pressure | 125 psi (8.6 bar) |
| Fluid Inlet Size | 1 in (25.4 mm) |
| Maximum Flow Rate | 189 L/min |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Maximum Operating Temperature | 150 °F (66 °C) |
| Maximum Solid Size | 0.125 in (3.175 mm, 0.3175 cm) |
| Model | Husky |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 280 CPM |
| UPC | 633955141339 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 15.6 × 8.4 × 16.8 in |
| Graco Shipping Weight | 26.5 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
