Graco

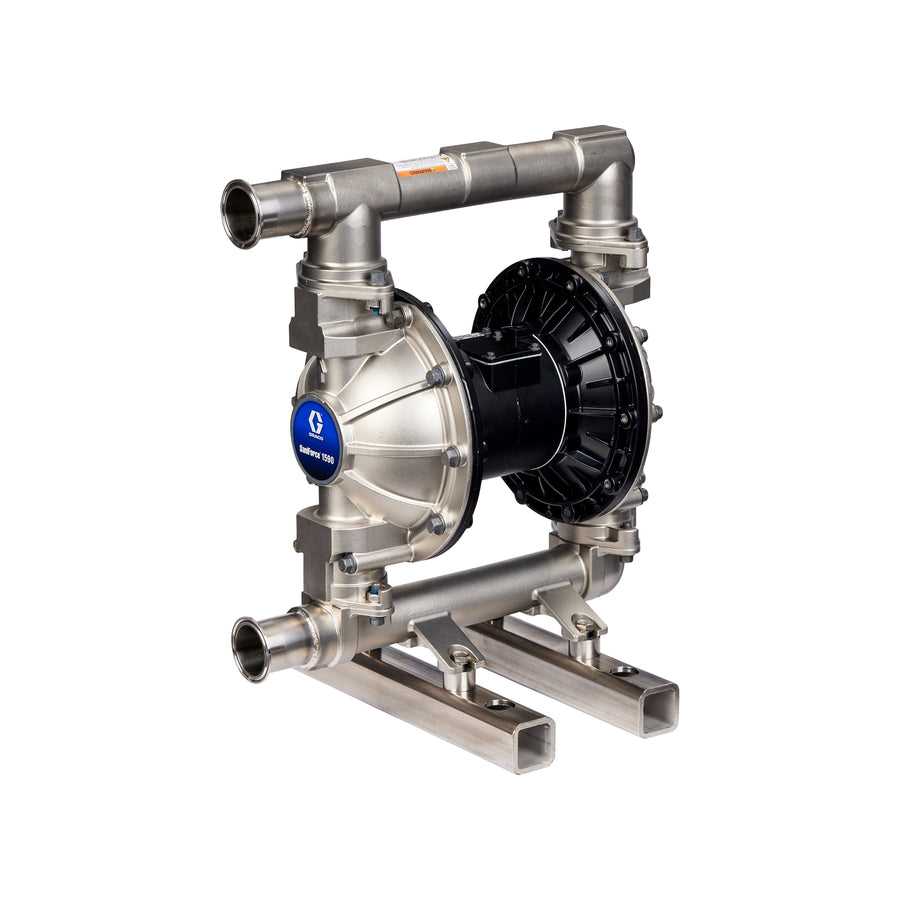

Graco SaniForce 1050 Beverage Pump, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms — 26D635
- OEM / SKU
- 26D635
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Dec 19 – Dec 26
Price
$5,370.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 26D635
SaniForce 1050 Beverage Pump, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms
Graco catalog description: PUMP,1050FG-PA01AS16SSCWSPPT21
Product group: SaniForce FDA Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 26D635
Documents Graco lists for part number 26D635.
- Instruction Manual SaniForce Diaphragm Pumps, BV-Series, Instructions 3A8983A
- Instruction Manual Husky 3300 Diaphragm Pump, Operation 3A0410L
- Instruction Manual Husky™ 2200 Air-Operated Diaphragm Pump, Operation 3A2578F
- Instruction Manual Husky ™ 15120 Air-Operated Diaphragm Pump, Operation 3A2888D
- Parts / Repair Manual DataTrak Kits, Instructions/Parts 313840S
- Parts / Repair Manual 3300 Air-Operated Diaphragm Pump, Repair/Parts 3A0411T
- Parts / Repair Manual Husky™ 2200 Air-Operated Diaphragm Pump, Repair/Parts 3A2714J
- Parts / Repair Manual Husky™ 15120 Air-Operated Diaphragm Pump, Repair/Parts 3A2889G
- Brochure 3H0016EN-B SaniForce Beverage Pump Brochure 3H0016
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 1/2 in |
| Fluid Passage Size | 1 in (25.4 mm) |
| fluid_passage_size_cm | 2.54 |
| Maximum Air Consumption | 50 SCFM |
| Maximum Air Pressure | 120 psi (8 bar) |
| Maximum Flow Rate | 155 L/min |
| Maximum Fluid Operating Temperature | 176 °F (80 °C) |
| Maximum Fluid Pressure | 120 psi (8 bar) |
| Maximum Solid Size | 1/8 in (3.2 mm, 0.32 cm) |
| Minimum Fluid Operating Temperature | 14 °F (-10 °C) |
| Model | SaniForce |
| Compressor Required | Yes |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 256 CPM |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 1.5-inch |
| UPC | 769946321159 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 24.75 × 19 × 31.5 in |
| Graco Shipping Weight | 80 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
