Graco

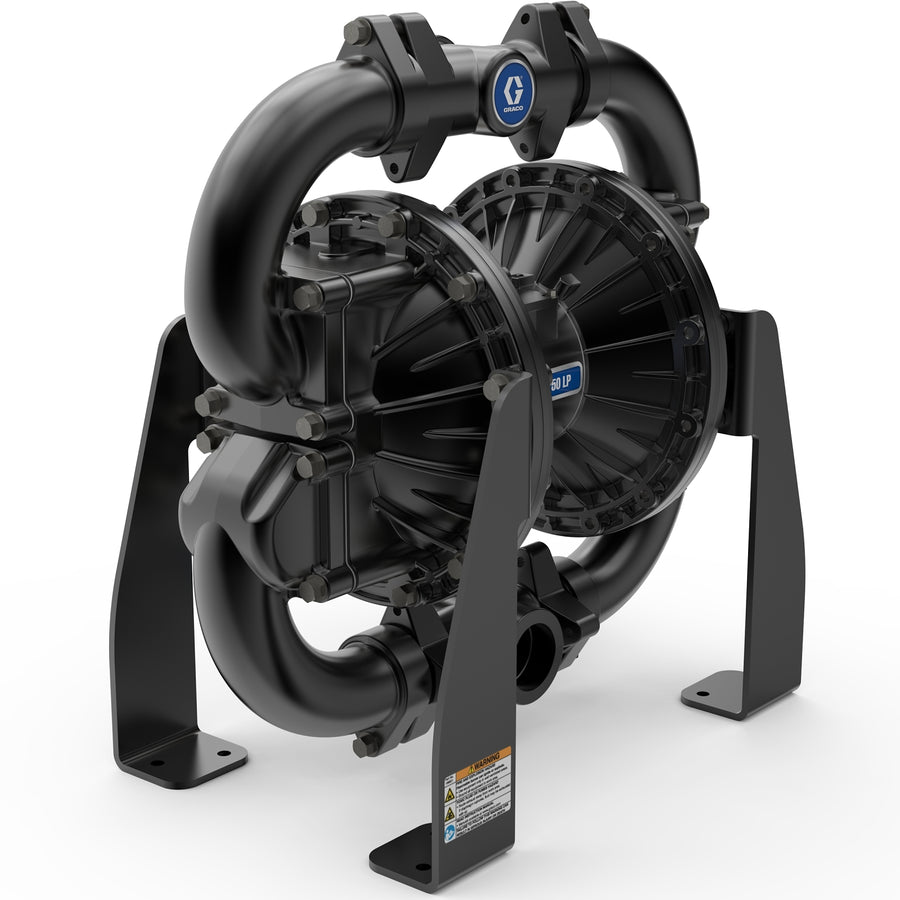

Graco Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, SP Diaphragms — 25U615
- OEM / SKU
- 25U615
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 20 – Nov 27
Price
$4,050.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 25U615
Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, SP Diaphragms
Graco catalog description: HUSKY PUMP,2150LP-PA01AA2FB-BSPBN
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 25U615
Documents Graco lists for part number 25U615.
- Instruction Manual Aluminum Husky 2150 LP Air-Operated Diaphragm Pumps, Instructions 3A8693C
Specifications
| Air Exhaust Port Size | 0.75 in |
|---|---|
| Air Inlet Size | 0.5 in |
| Fluid Outlet Size | 50 mm |
| Maximum Air Consumption | 175 SCFM |
| Maximum Air Pressure | 120 psi (8.27 bar) |
| Fluid Inlet Size | 2 in (50 mm) |
| Maximum Flow Rate | 189.3 L/min |
| Maximum Fluid Pressure | 120 psi (8.27 bar) |
| Maximum Operating Temperature | 180 °F (82 °C) |
| Maximum Solid Size | 1.8 in (45.72 mm, 4.57 cm) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| Model | Husky |
| Diaphragm Compatible Material | Santoprene |
| check_material | Buna-N |
| Maximum Cycle Rate | 145 CPM |
| UPC | 769946239515 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 25 × 15 × 26 in |
| Graco Shipping Weight | 90 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
