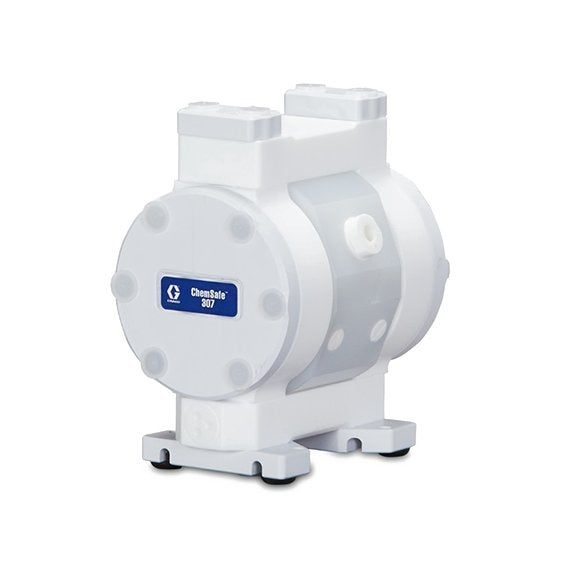

Graco ChemSafe 307 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port — 24X427
- OEM / SKU
- 24X427
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$2,500.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24X427
ChemSafe 307 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
Graco catalog description: CHEMSAFE PUMP,307PT-P01A-PT3-PT-PT-PO
Product group: ChemSafe Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24X427
Documents Graco lists for part number 24X427.
- Parts / Repair Manual ChemSafe™ 307 Air-Operated Diaphragm Pump, Instructions-Parts 334793F
- Brochure Process Equipment Brochure 300570
Specifications
| Air Inlet Size | 1/8 in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 9.525 mm |
| Maximum Air Consumption | 9.3 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 3/8 in (9.525 mm) |
| Maximum Flow Rate | 25.4 L/min |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Maximum Operating Temperature | 212 °F (100 °C) |
| Maximum Solid Size | 0.08 in (2 mm, 0.2 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | ChemSafe |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 610 CPM |
| UPC | 755652266884 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 9 × 7 × 10 in |
| Graco Shipping Weight | 6.9 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
