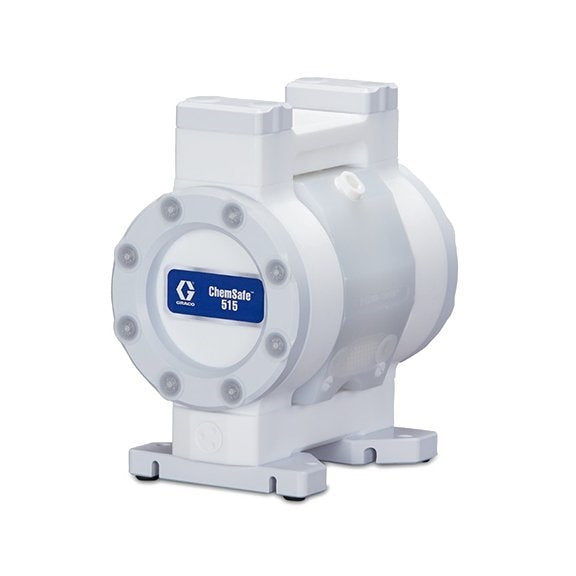

Graco ChemSafe 515 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port — 24X425
- OEM / SKU
- 24X425
- Part category
- Diaphragm Pumps
- Availability
- In stock: 9 available
Price
$4,890.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24X425
ChemSafe 515 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
Graco catalog description: CHEMSAFE PUMP,515PT-P01A-PT3-PT-PT-PO-P
Product group: ChemSafe Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24X425
Documents Graco lists for part number 24X425.
- Parts / Repair Manual ChemSafe™ 515 Air-Operated Diaphragm Pump, Instructions-Parts 334794G
- Brochure Process Equipment Brochure 300570
Specifications
| Air Inlet Size | 1/4 in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 12.7 mm |
| Maximum Air Consumption | 29 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 1/2 in (12.7 mm) |
| Maximum Flow Rate | 60.6 L/min |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Maximum Operating Temperature | 212 °F (100 °C) |
| Maximum Solid Size | 0.16 in (4 mm, 0.4 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | ChemSafe |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 381 CPM |
| UPC | 755652266860 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 14.5 × 14.5 × 11 in |
| Graco Shipping Weight | 22 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
