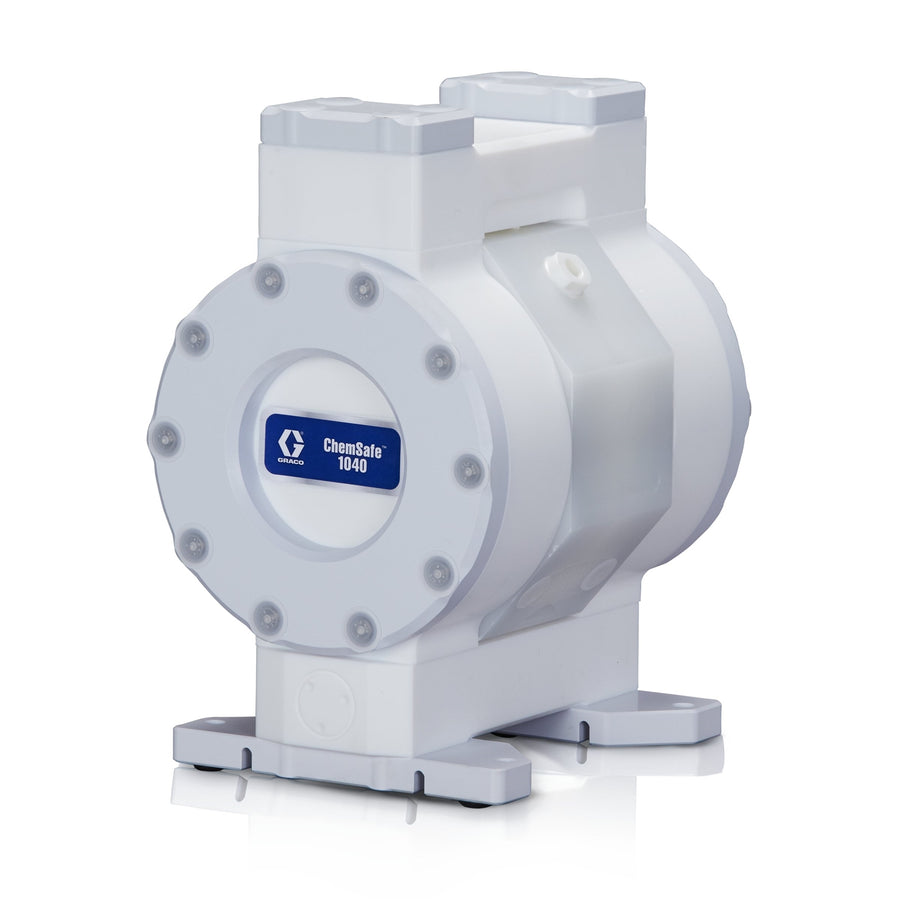

Graco ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port — 24X423
- OEM / SKU
- 24X423
- Part category
- Diaphragm Pumps
- Availability
- In stock: 36 available
Price
$9,580.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24X423
ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
Graco catalog description: CHEMSAFE PUMP,1040PT-P01A-PT3-PT-PT-PO
Product group: ChemSafe Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24X423
Documents Graco lists for part number 24X423.
- Parts / Repair Manual ChemSafe™ 1040 Air-Operated Diaphragm Pump, Instructions-Parts 334795G
- Brochure Process Equipment Brochure 300570
Specifications
| Air Inlet Size | 1/4 in |
|---|---|
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size | 25.4 mm |
| Maximum Air Consumption | 46 SCFM |
| Maximum Air Pressure | 100 psi (7 bar) |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size | 1 in (25.4 mm) |
| Maximum Flow Rate | 148 L/min |
| Maximum Fluid Pressure | 100 psi (7 bar) |
| Maximum Operating Temperature | 212 °F (100 °C) |
| Maximum Solid Size | 80 in (2030 mm, 203 cm) |
| Minimum Operating Temperature | 32 °F |
| Model | ChemSafe |
| Diaphragm Compatible Material | PTFE |
| Air Inlet Thread Gender | Female |
| Maximum Cycle Rate | 260 CPM |
| UPC | 755652266846 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 14.85 × 16.15 × 12.3 in |
| Graco Shipping Weight | 43.08 lb |
