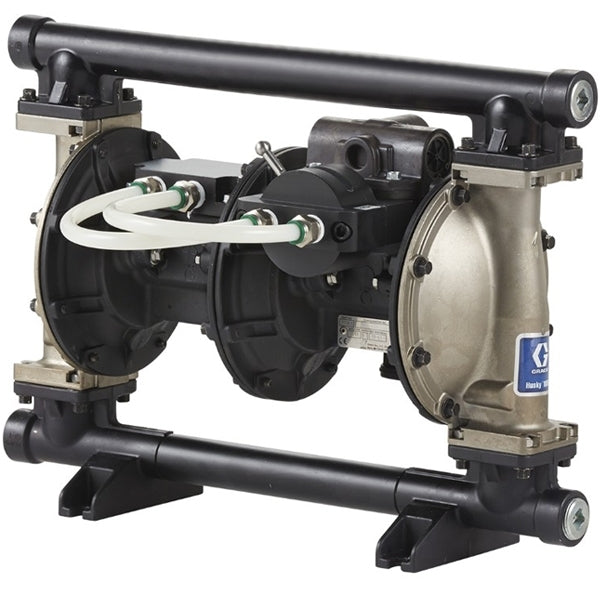

Graco Husky 1050HP 1 in. (25.4 mm) NPT Al Pump, AL Center Section, SS Seats, CW Balls & CO Diaphragm — 24W768
- OEM / SKU
- 24W768
- Part category
- Diaphragm Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$5,670.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24W768
Husky 1050HP 1 in. (25.4 mm) NPT Al Pump, AL Center Section, SS Seats, CW Balls & CO Diaphragm
Graco catalog description: HUSKY PUMP,1050HP,SS/CW/CO/A
Product group: Air-Operated Diaphragm Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Specifications
| Air Exhaust Port Size | 3/4 in |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size | 3/4 in |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size | 1 in (25.4 mm, 2.54 cm) |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size | 25.4 mm (2.54 cm) |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption | 95 SCFM |
| Maximum Air Pressure | 125 psi (8.62 bar, 862 kPa, 0.862 MPa) |
| Maximum Cycle Rate | 140 CPM |
| Maximum Flow Rate | 189 L/min |
| Maximum Fluid Pressure | 250 psi (17.2 bar, 1720 kPa, 1.72 MPa) |
| Maximum Solid Size | 0.125 in (3.175 mm, 0.3175 cm) |
| Model | Husky |
| Series | 1050HP |
| Diaphragm Compatible Material | Polychloroprene |
| UPC | 755652063162 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 24 × 18 × 19.2 in |
| Graco Shipping Weight | 68 lb |
Source: Graco Partner Portal product specifications, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
