Graco

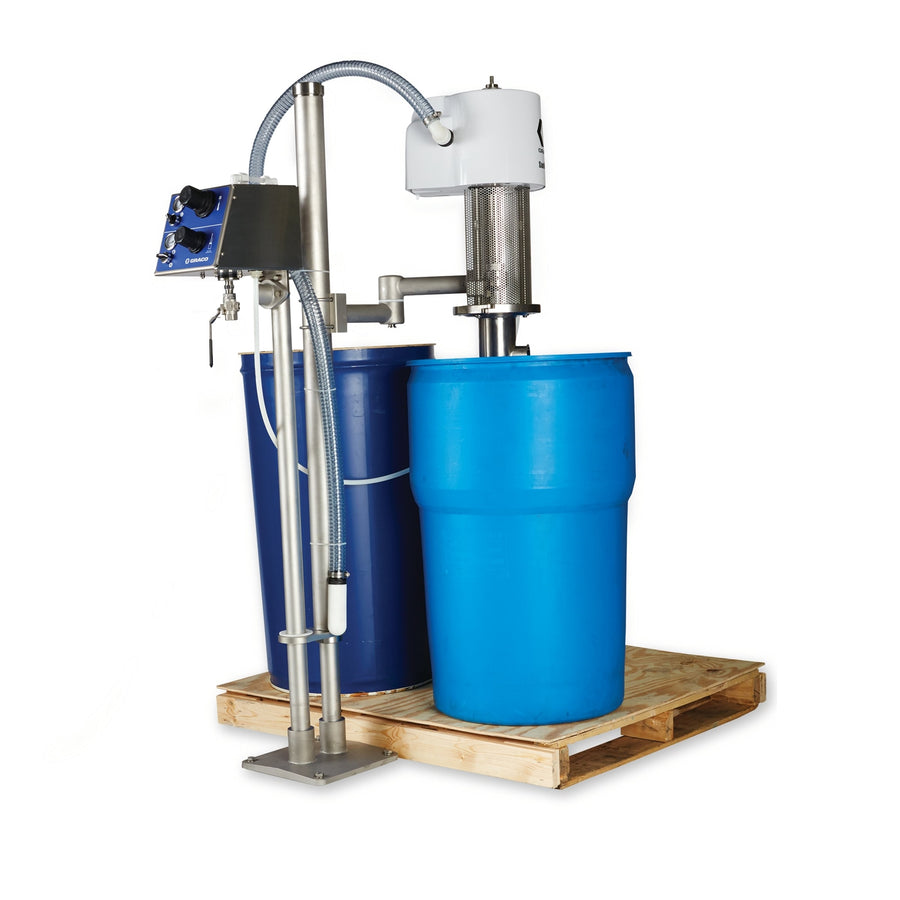

Graco SaniForce 6:1 Ratio Elevator with Stationary Base & PTFE Packings — 24V323
- OEM / SKU
- 24V323
- Part category
- Drum Elevators
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$24,680.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24V323
SaniForce 6:1 Ratio Elevator with Stationary Base & PTFE Packings
Graco catalog description: ELEVATOR,STATIC,PACKAGE,SANI 6:1
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24V323
Documents Graco lists for part number 24V323.
- Parts / Repair Manual SaniForce® Piston PumpElevator Packages, Instructions-Parts 333406F
- Brochure SaniForce 2.0 Container Evacuation Solutions Brochure 345028
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Inlet Size | 0.5 in (12.7 mm) |
|---|---|
| For Use With | Food, Personal Care, Pharmaceutical |
| Maximum Air Inlet Pressure | 100 psi (6.9 bar, 690 kPa) |
| Maximum Working Pressure | 600 psi (41 bar, 4100 kPa) |
| UPC | 633955531734 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 73 × 44 × 33 in |
| Graco Shipping Weight | 380 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
