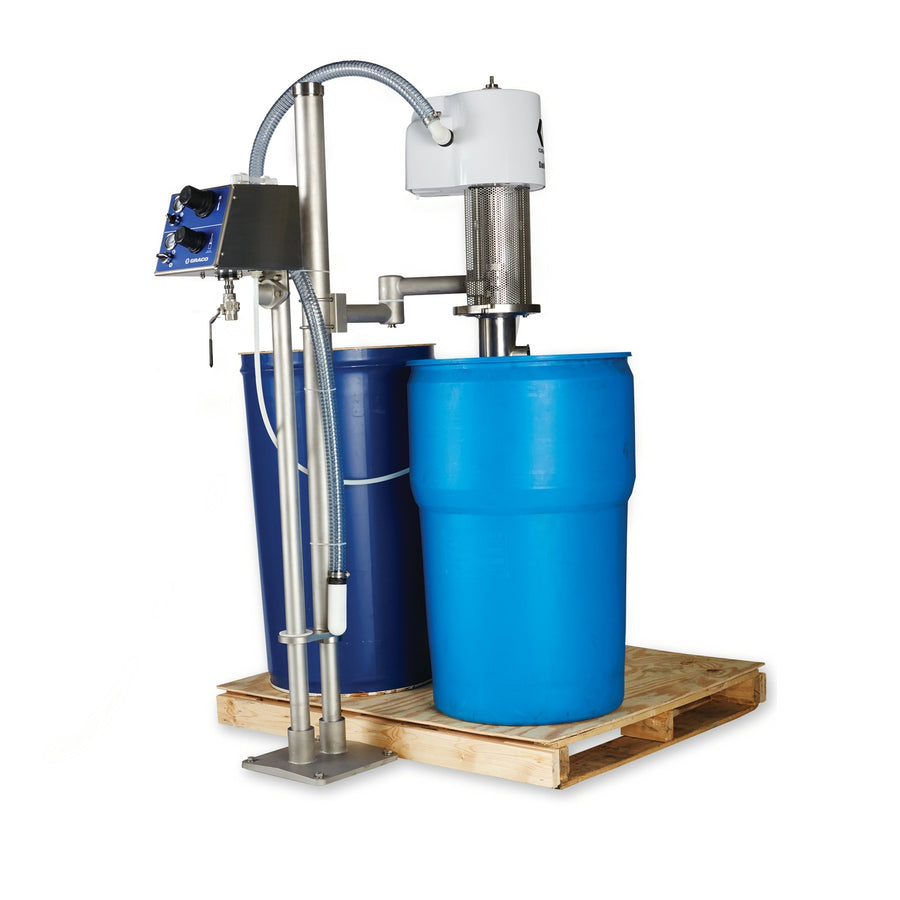

Graco 5:1 Ratio SaniForce Elevator with Stationary Base — 24V315
- OEM / SKU
- 24V315
- Part category
- Piston Pumps
- Availability
- Est. factory ship Dec 8 – Dec 15
Price
$22,720.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24V315
5:1 Ratio SaniForce Elevator with Stationary Base
Graco catalog description: ELEVATOR,SANITARY,STATIC,5:1
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24V315
Documents Graco lists for part number 24V315.
- Parts / Repair Manual SaniForce® Piston PumpElevator Packages, Instructions-Parts 333406F
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Inlet Size | 0.5 in (12.7 mm) |
|---|---|
| Air Inlet Thread Gender | Female |
| For Use With | Food, Personal Care, Pharmaceutical |
| Includes | Stationary Base |
| Maximum Air Inlet Pressure | 100 psi (6.9 bar, 690 kPa) |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum Working Pressure | 400 psi (28 bar, 2800 kPa, 2.8 MPa) |
| Model | SaniForce |
| Portable | Non-Portable |
| UPC | 633955520899 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 70.8 × 18 × 21.6 in |
| Graco Shipping Weight | 214 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
