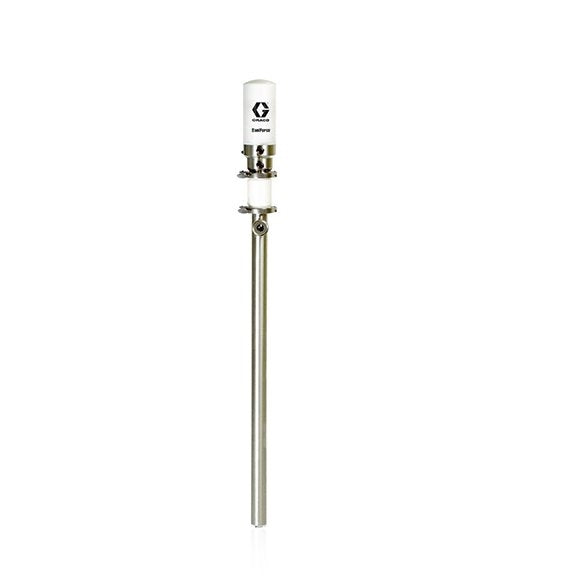

Graco 2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with UHMWPE & FKM Packings — 24R046
- OEM / SKU
- 24R046
- Part category
- Piston Pumps
- Availability
- Est. factory ship Nov 19 – Nov 26
Price
$5,860.00 USD
Need to confirm the part?
Send Triplex the OEM number or an equipment nameplate photo. We’ll help verify what you need before you order.
Part details
Graco part number: 24R046
2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with UHMWPE & FKM Packings
Graco catalog description: SANIFORCE PISTON PUMP, 2:1,STD LGTH,UHMW
Product group: SaniForce Piston Pumps
Product resources
Loading verified manuals, brochures and product literature for this part family.
-
Triplex resource
Triplex Model & Performance Center
Manuals, brochures, product literature and engineering resources.
Manuals for 24R046
Documents Graco lists for part number 24R046.
- Parts / Repair Manual SaniForce® 2:1 Sanitary Piston Pumps, Instructions/Parts 3A2977M
- Brochure SaniForce 2.0 Overview Brochure 344855
- Safety Data Sheet Loctite 567 Low Strength Thread Sealant, Safety Data Sheet MSD201EN
Specifications
| Air Inlet Size | 3/8 in (9.525 mm) |
|---|---|
| Fluid Outlet Size | 25.4 mm |
| Air Inlet Thread Gender | Female |
| Maximum Air Inlet Pressure | 100 psi (6.9 bar) |
| Maximum Flow Rate | 9.46 L/min |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Working Pressure | 250 psi (17 bar) |
| Model | SaniForce |
| Portable | Non-Portable |
| UPC | 633955462014 |
| Country of Origin | US |
| Unit of Measure | EA |
| Shipping Carton (L × W × H) | 63.6 × 10.8 × 12 in |
| Graco Shipping Weight | 34.6 lb |
Source: Graco Partner Portal product specifications; graco.com product page manuals, checked 2026-10-16. Confirm fit with your pump model and serial number before ordering.
